Specification:
Item Type: Temperature Sensor Module
Working Voltage: 5V Version: DC 3.7-5.5V; 12V Version: 6-25V
Working Current: 7-13MA
MODBUS RTU protocol, 03 read command, 06 write command.
Serial Port Baud Rate: 9600 (default), N, 8, 1
By modifying the 485 address, up to 247 modules can be cascaded (more than 16 please use R485 repeater)

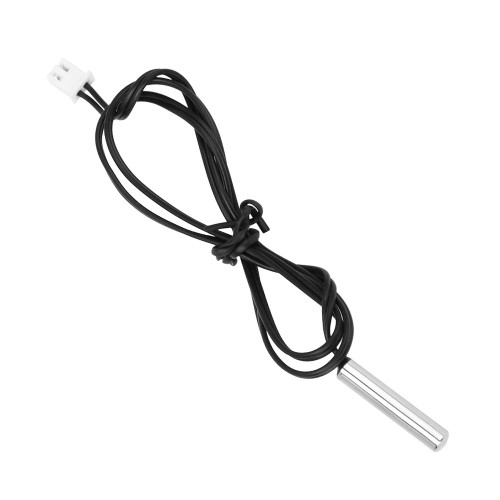

Adapted Sensor: B3950 10K 1% NTC thermistor Resistor
Temperature Measurement Range (using Our NTC Sensor): -20? to +125?.
Temperature Measurement Accuracy (using Our NTC Sensor): 1%.
Size: Approx. 30 x 15 x 6mm / 1.2 x 0.6 x 0.2in
Weight: 5V version 2g, 12V version 2.5g
Optional Style: 5V TTL232 No Sensor, 5V 485 No Sensor, 12V 485 No Sensor, NTC Sensor A, NTC Sensor B
Package List:
1 x Temperature Sensor Module
