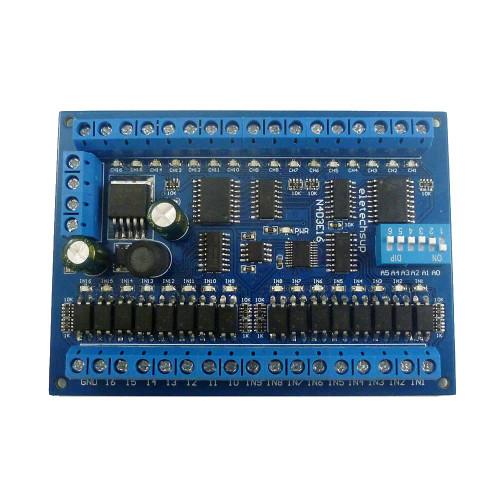

RS485 Remote Control Modules PLC Expansion Board With 16Input And Output Channels Remote Control Module For DC6.5-30V

RS485 Remote Control Modules PLC Expansion Board With 16Input And Output Channels,Remote Control Module For DC6.5-30V

Features:
16 inputs can remotely control 16 outputs of another board via RS485 bus (relevant registers must be set);
RTU command, Support 03 06 function code(Some registers support 16 function codes);
Under the ''Delay'' command ,the delay is 255 seconds;
commands can be made Terminals ( assistant) OR ''Modbus Poll'' Enter;
Under the command modes, it can support up to 64 devices
The default baud rate is 9600BPS. The baud rate can be selected through jumpers: 2400 4800 9600 19200BPSload: the load current of each channel is 300MA

Specifications:
Material:ABS
Working voltage: DC6.5-30V (7.5V 9V 12V 15V 24V)
Working current:8-50MA
16channels photoelectric isolation Input ports (low level active )
16channels output (ULN2803NPN output)
''open''''close''''Momentary''''Self-locking''''Interlock''''Delay'' 6Commands
Option Type:1xRS485 Remote Control Module,1xRS485 Remote Control Module with Shells

Package Includes:
1xRS485 Remote Control Modules
