Description:

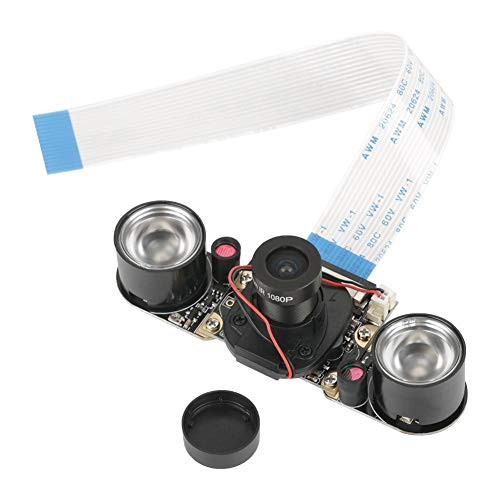

The Camera Module is a custom designed add-on for Raspberry Pi. It attaches to Raspberry Pi by way of one of the two small sockets on the board upper surface. This interface uses the dedicated CSI interface, which was designed especially for interfacing to cameras. The CSI bus is capable of extremely high data rates, and it exclusively carries pixel data. Raspberry Pi NOT INCLUDED.
Specification:
Lens holder: M12x0.5 or CS Mount
Pixels: 5MPixel sensor
Still Picture Resolution: 2592 x 1944
Max Video Resolution: 1080p
Max Frame Rate: 30fps
Size: 2.5 x 2.5 x 2.6cm / 0.98 x 0.98 x 1.02inch
Cable Length: 15cm / 5.9inch
Package Weight: 20g
Quantity: 1pc
Fitments: For Raspberry Pi 3
Download:
http://www.arducam.com/downloads/modules/RaspberryPi_camera/RaspberryPi_Camera_Module_DS_V3.0.pdf
Package included:
1 x Camera Board /w M12x0.5 mount Lens fully compatible with Raspberry Pi board
1 x 15cm 15pin FPC Cable
Note:
Raspberry Pi Type Board is NOT INCLUDED.
The Camera Module is a custom designed add-on for Raspberry Pi. It attaches to Raspberry Pi by way of one of the two small sockets on the board upper surface. This interface uses the dedicated CSI interface, which was designed especially for interfacing to cameras. The CSI bus is capable of extremely high data rates, and it exclusively carries pixel data. Raspberry Pi NOT INCLUDED.
Specification:
Lens holder: M12x0.5 or CS Mount
Pixels: 5MPixel sensor
Still Picture Resolution: 2592 x 1944
Max Video Resolution: 1080p
Max Frame Rate: 30fps
Size: 2.5 x 2.5 x 2.6cm / 0.98 x 0.98 x 1.02inch
Cable Length: 15cm / 5.9inch
Package Weight: 20g
Quantity: 1pc
Fitments: For Raspberry Pi 3
Download:
http://www.arducam.com/downloads/modules/RaspberryPi_camera/RaspberryPi_Camera_Module_DS_V3.0.pdf
Package included:
1 x Camera Board /w M12x0.5 mount Lens fully compatible with Raspberry Pi board
1 x 15cm 15pin FPC Cable
Note:
Raspberry Pi Type Board is NOT INCLUDED.
