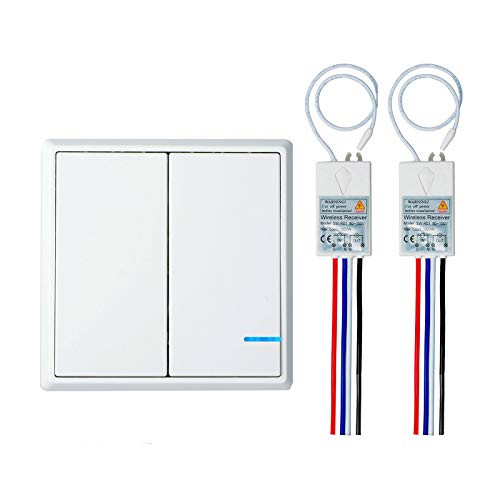

Remote Control Switch, Upgraded Version 2 Way Wireless Receiver Remote Light Switch for Lamp, Household Appliances(24V)

Specification: Code Matching Method Intelligent Learning Type Working Environment: -40~+80 Degrees Receiving Sensitivity: 2-105dBm Output Current: Inductive 3.5A Resistance: ?6A Package List: 1 x Remote Control Switch Note: 1. Do not use over voltage 2. Do not use over frequency 3. Read the setup introduction carefully before setting up The receiver has the following 3 working modes can be set, two?way jog, two?way self?locking, and two?way interlocking. <You can change the working mode according to your needs, but remember that you must turn off the power when changing the working mode. Under the circumstances! 1. Jogging: insert the black jumper on the receiver on the 2+3 pins to jog. There is a mark M< on the board. Literal translation: press and hold the button on the remote control to work, and release it to stop. !> 2. Self?locking: insert the black jumper on the receiver into the two pins 1+2 to be self?locking. There is a mark T< on the board. Literal translation: the receiver is turned on and off on the remote control. Finish on the same button, press the remote control buttons in turn, the first button is on, the second button is off, the third button is on, the fourth button is off, and so on!> 3. Interlocking: Leave the black jumper caps 1, 2, and 3 on the receiver as interlocking. There is a mark OPEN=L< on the board. Literal translation: Press the A button on the remote control to turn on and B to turn off. Or the A key is off and the B key is on. If the remote control has multiple buttons, it will learn which button is on, and all other buttons are off!
