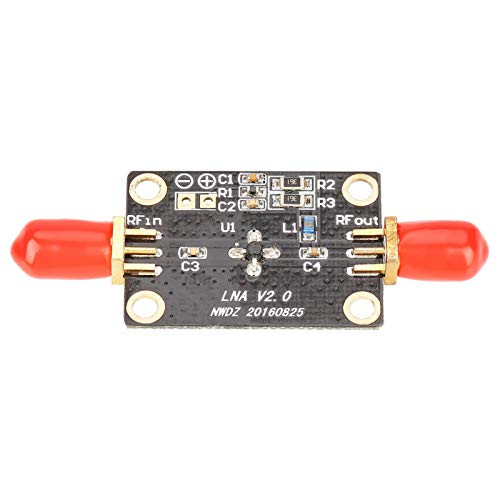

Radio Amplifier Mini Wide Frequency 50K-4G Ham Radio Module for Remote Control Receiver(No Shell Bare Board)

This RF amplifier has the advantages of wide frequency range, high gain, low noise figure, etc. Can be used for various RF receiving front ends to increase the communication distance. Feature: The utility model has the advantages of wide frequency range, high gain, low noise figure, etc. Can be used for various RF receiving front ends to increase the communication distance. A wide range of shortwave, FM radio, remote control receiver, cable TV signal amplifier, such as the need for low noise small signal RF amplification. They are designed for narrow or wide bandwidth commercial applications that require high gain and low noise IF or RF amplification. With the characteristic of excellent performance, uniformity and reliability. Specification: Model: 50K-4G Optional Type: Bare Board, CNC Shell Power Supply Voltage: DC9-15V, typical +12V (Typical current value 45mA) Gain: Typical value 25dB@0.8G Input Output Impedance: 50? Maximum output power: P1db + 16dBm@0.8G Input signal: <0dBm (>0dBm input signal has been distortion) Bandwidth: 50K-4GHZ (different gain in different frequency) Noise Coefficient: 1.9dB@1.9GH Bare Board Size: Approx. 6*2.5cm/2.4*1inch CNC Shell Size: Approx. 7*3.3*1.3cm/2.8*1.3*0.5inch Weight: Approx. 5g~40g / 0.2oz~1.4oz Package List: 1 x RF Amplifier
