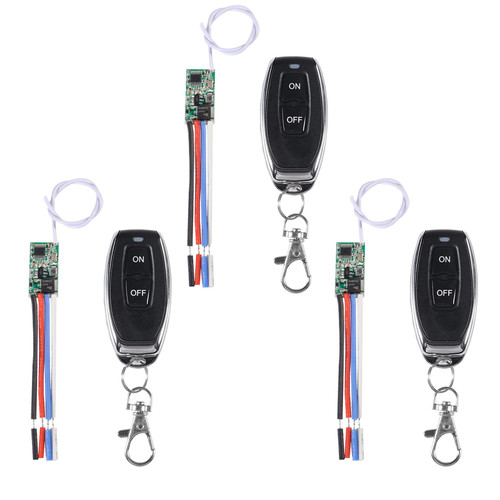

Specification:
Working voltage: DC 3.6V~24V
Maximum load: 2A
Static current: 3.6 mA ~ 5.5mA
Working frequency: 433MHz
Reception sensitivity: ? -107dBm
Output DC3.6V~DC24V
Size: 22.5 mm x 11mm x 8mm (length × width × high)
Mini size support coding format 1527 learning code
Input: DC3.6V~DC24V
Output: DC3.6V~DC24V
Modulation mode:ASK (superheterodyne)
Number of stored remote controls: ? 10
Working mode: Momentary, Toggle, Latching Mode
Learning style: Learning Button
Steps:
Clear Code: Press the learning button on the module 8 times continuously, and the light flashes seven times and then goes out.
Momentary Mode?Press Module learning button 1 time, the indicator light is always on, then press the remote control button, the indicator light flashes 3 times and then turns off , then the learning is successful; If the code is not successful , the indicator lights out of the learning state after 15 seconds .
Toggle Mode ? Press the Module Learning button 2 times, the indicator light always turns on; then press the remote control button, the indicator lights flicker three times and then off, then the learning is successful; if the code has not been successful, the indicator lamp goes out of the study state after 15 seconds.
Latching Mode?Press the Module Learning button 3 times, the indicator light always turns on; and then press the buttons on the remote control , the indicator lights flicker three times and then off,then the learning is successful; if the code has not been successful, the indicator lamp goes out of the study state after 15 seconds.
