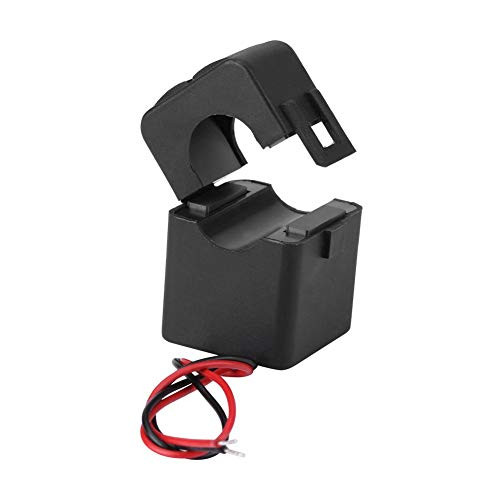

PZCT-02 Split Core Current Transformer Coil Sensor Split Core Current Transformer for 100A Amp Energy Meter

Descriptions: This is a mini split base current transformer; it's the smallest one compared to the similar products (output 100MA). Fully enclosed, good mechanical properties and environmental resistance, strong voltage isolation capability, safety and reliability. Used for energy meter in special; AC 220v, 380v power supply can both be applied. Specifications: Brand: PEACEFAIR Model: PZCT-02 Environment temperature: -40?~+85?Relative humidity: ? 90%(40?)Working frequency: 50Hz~60HzInsulation endurance grade: B grade (130?)Insulation resistance: >1000M? normallyDielectric strength: can afford power frequency 1000V/1minuteFlame resistance: Conform to UL94-Vo gradeInternal resistance: 10? Measuring range: 0-100A Weight:59gApplication:1. The current transformer is used for energy meter in special; AC 220v, 380v power supply can both be applied.2. When you fix the energy meter, you don't need to cut off the power if you use this product. Package Included: 1 x  Current Transformer Note: 1. The CT primary should be connected in series with the test current loop, the secondary should be as work in the short-circuit state.2. The secondary circuit is not allowed open circuit, so please do not install fuse.
