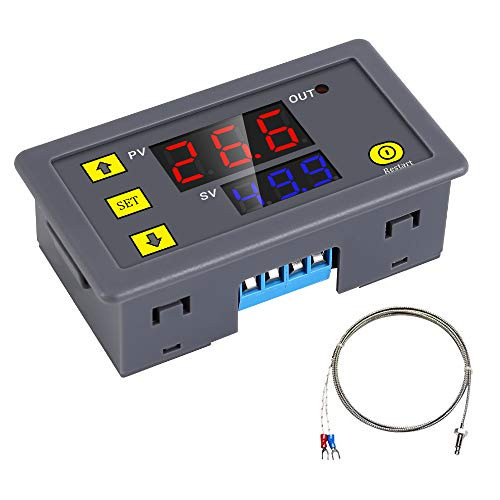

PUSOKEI Temperature Controller Module DC 12V/220V Programmable Digital Thermometer Digital LCD Screen Display Meter, Portable Temperature Controller -12V-

Specification: Item Type: Temperature Controller Module Material: PCB Uses: Temperature controller, suitable for use in cases such as cabinets, instruments and meters. Temperature Measurement Range: -50~110? Temperature Measurement Accuracy: ±0.1? Temperature Control Range: -40~105? Temperature Control Accuracy: 0.1? Measurement Input: NTC10K L = approx. 1meter / 3.3ft Control Method: Position control Output Type: Relay output Output Capacity: ?10A Cut-Out Size: Approx. 77 x 70mm / 3 x 2.8in 1. Low Temperature Start-Heating Mode: When the set starting temperature value is < the stopping temperature value, when the real-time temperature ? the starting temperature, the relay is closed and the heating equipment works; when the real-time temperature ? the stopping temperature, the relay is disconnected and the heating equipment stops working. 2. High Temperature Start-Cooling Mode: When the set start temperature value> stop temperature value, when the real-time temperature ? the start temperature, the relay closes and the refrigeration equipment works; when the real-time temperature ? the stop temperature, the relay opens and the refrigeration equipment stops working. Package List: 1 x Temperature Control Module 1 x Panel  1 x Panel Film 1 x Temperature Control Probe 4 x Screw 4 x Nut 4 x Plastic Sleeve
