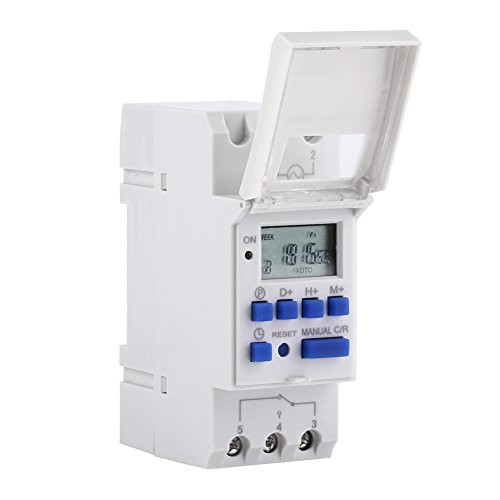

Programmable Timer - Electronic Relay Time Weekly Programmable Electronic Relay Time Switch LCD Display 16on and 16off Timer 1Pcs-110V??-

Specifications: Input Voltage: AC/DC12V, AC/DC24V, AC110V, AC220V(Optional) Current: 15A Power: 3000W Contact Voltage Rating: AC 180V to 264V(50/60Hz) Load Capacity: 16A 250VAC(resistive load) On/Off Operation: 16 on and 16 off(manual/auto) Display: LCD Power: 4.5VA(ma x) Error: ?2s/day(25?)    Mounting Method: DIN rail(not included);Bound: 1 min to 168 hours;Operating Temperature: -10? to 55?;Size: 86 x 36 x 65mm / 3.38 x 1.41 x 2.56";Quantity: 1 Instruction: 1, When you use the timer switch for the first time, input AC and charge the inbuilt battery please, then press reset button. 2, The timer switch is at 24-hour mode as default. Press and hold "time" button(bottom left, nex t to "reset") for 5 seconds till it display "AM" to set to 12-hour mode. Press and hold again "time" button for 5 seconds to set back to 24-hour mode. Programming: Step.Button;Programming 1.Press P;Setting"1 ON" time(display 1 on) 2.Press D+;Select days of week(if you want same set for every day, you do not need to press this button) 3.Press H+/M+;Set hours and minutes 4.Press P;Setting "1 OFF" time(display 1 off) 5.Press P;Select days week(If you want same set for every day, you do not need to press this button) 6.Press H+/ M+;Set hours and minutes 7.Repeat step 2 to 6;Set other on/off time 8.Press "time"(bottom left, ne xt to "reset");End Package Includes: 1 x Timer Switch 1 x English Manual
