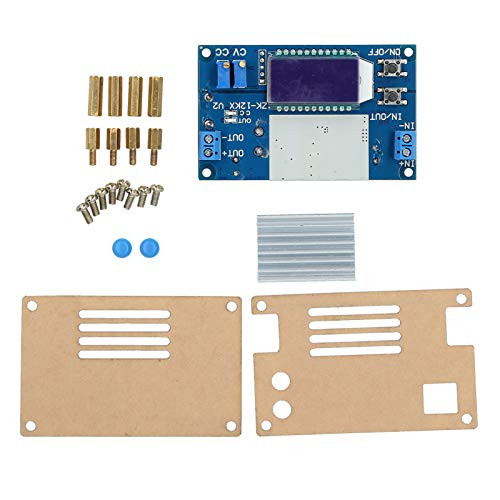

Practical Safe and Reliable LCD Display Power Supply Module LCD Power Module High Efficiency Sturdy and Durable Factory for Car

Feature:1. The design is beautiful and generous, with a crystal shell, and the buttons have a good touch texture. 2. The button can control the output to be turned off and on, and the power?on default can be set to ON or OFF. 3. The LCD display can display input and output voltage, output current and output power. 4. High security, with input terminal anti-reverse protection, reverse connection will not burn. 5. High efficiency is over 95%, high current heating is small, output voltage 1.2?30V can be adjusted freely, constant current value can be adjusted from 0?12A, suitable for high?power LED constant current drive, lithium battery charging, etc. Specification: Item Type: Power Supply Module Model: ZK-12KXMaterial: PlasticInput Voltage: 5.3-32V (limit 35V; the lowest input voltage can be 4V to achieve step-down, but the voltage and current measurement is not accurate when the input is lower than 5.3V)Output Voltage: 1.2-30V (must make sure that the input voltage is higher than the output voltage, the minimum voltage difference between the two is 0.8V)Output Current: 0.2-12A Maximum, if it exceeds 8A or the module temperature exceeds 65?, please strengthen heat dissipation (overload and overheating will not be guaranteed). When the output voltage is lower than 2V, the constant current is invalid.Output Power: Natural heat dissipation 120W (within 8A), enhanced heat dissipation 160WVoltage Display: Resolution: 0.05V, Range: 0-32VCurrent Display: Resolution: 0.01A, Range: 0-12AConversion Efficiency: About 96%Working Current: About 25mASoft Start: Yes (it may fail when the module with high power load is started)Input Reverse Connection Protection: YesAnti-backflow At The
