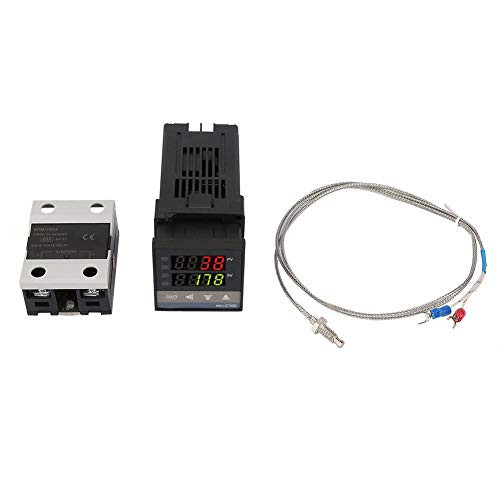

PID Temperature Controller REX-C100 Digital LED Thermostat Controller Regulator with K Thermocouple Sensor AC110V-240V 0?~1300?

Specification: REX-C100 thermostat Model no. : rex-c100fk07-v *AN Measurement accuracy: 0.5% FS End to end compensation tolerance:±2? (can be modified by software in 0~50?) Resolution: 14 bits Sampling cycle: 0.5 seconds Power supply: AC 110-240v 50/60hz Process value (PV), set value (SV) Output, alarm and self-setting can be indicated : by LED PIN control (including ON/OFF, stepper PID and continuous PID) Self-adjusting control Delayed output: contact capacity 250V AC 3A (resistance load) Alarm function output: 2 channels Proportional band (P) : 0 ~ full range (ON/OFF control set to 0) The testing temperature range: 0 ~ 1300? Insulation resistance: > 50M ohm (500V DC) Insulation resistance: 1500V AC/min Insulation resistance: power consumption <10VA The environment of service: 0 ~ 50? Non-corrosive gas environment 30 ~ 85% RH Appearance size: 48*48*110mm Two, K thermocouple probe cable Length: 1 m Diameter of sensor: 4.5mm Temperature range: 0 ~ 1300? Internal insulation: glass fiber External shielding: insulation shielding Maximum 40A SSR (solid state relay) Output voltage range: standard Output current: 40A Input voltage: DC 3-32v Output voltage: 24-380v AC Weight: 265 g / 9.3 oz(approx.) Package list: 1 x REX-C100 PID temperature controller 1 x K thermocouple/temperature sensor 1 x Max 40A SSR
