Features:
1.Built-in high precision chip for high sensitivity and accurate temperature control.
2.Support ?/? temperature display.
3.When the thermocouple signal is input, the resolution of digital display can reach 0.1 ?/0.1?.
4.Relay and SSR integration, users can freely use relay output or SSR output.
5.Short shell design, only 85mm depth, easy tomountand use.
6.Robust flame-retardant housing, waterproof, dustproof and anti-shock.
Specification:
Model: MC901
Control type: temperature
Control mode: PID control and self-tuning control
Power consumption: <10VA
Measurement object: temperature
Temperature range: -199~1300C
Temperature measurement error: 1C
Measurement accuracy: 0.5%FS
Working voltage: 85~265V
Output signal: Relay/SSR output
Display: F or C
Input: Universal input (K, E, J, N, S, T, R, B, Pt100, etc., can be changed by yourself)
Minimum resolution: 0.1C / 0.1F
Mounting type: embedded panel
Mounting size: 92*92mm / 3.6*3.6in
Dimensions: 96*96*85mm / 3.8*3.8*3.3in
Weight: Approx. 252g/8.9oz
Package List:

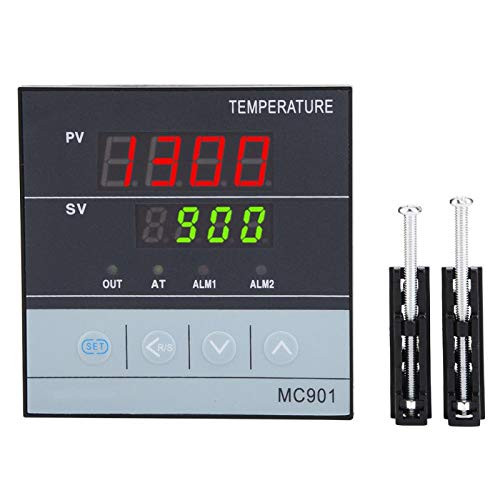

1 * Digital PID Temperature Controller
2 * Bolts
Note:
1.Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item.
2.Please allow slight error due to manual measurement. Thanks for your understanding.
