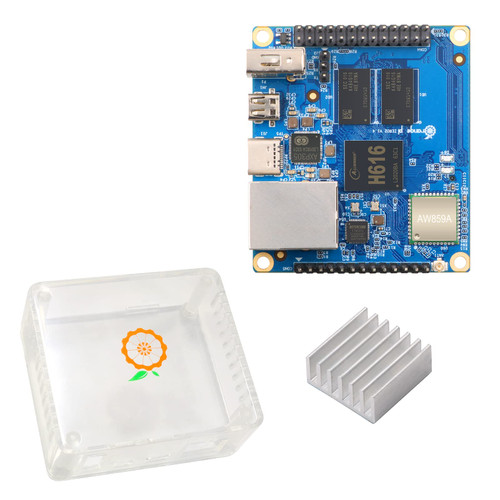

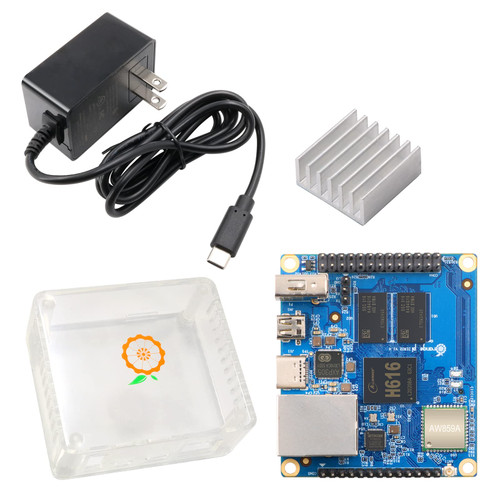

Orange Pi Zero 2 Product Parameters
CPU: Allwinner H616 64-bit high-performance Quad-core Cortex-A53 processor
GPU: Mali G31 MP2; Supports OpenGL ES 1.0/2.0/3.2, OpenCL 2.0
Video decoding; H.265 Main10@L5.1 decoder up to 4K@60fps or 6K@30fps; VP9 Profile 2 decoder up to 4K@60fps; AVS2 JiZhun 10bit decoder up to 4K@60fps; H.264 BP/MP/HP @L4.2 decoder up to 4K@30fps
Video encoding: H.264 BP/MP/HP encoder up to 4K@25fps or 1080p@60fps; JPEG snapshot performance of 1080p@60fps
Memory(SDRAM): 1GB (Shared with GPU?
Onboard Storage: TF card slot; 2MB SPI Flash
Onboard Network: Support 1000M/100M/10M Ethernet
Video Outputs: Micro HDMI 2.0a up to 4K@60fps; TV CVBS output, Support PAL/NTSC?Via 13pin interface board?
Audio output: Micro HDMI; 3.5mm audio port (Via 13pin interface board)
Power Source: Type-C interface 5V2A input
USB 2.0 Ports: 3*USB 2.0 HOST?Two of them are via 13pin interface board?
Low-level peripherals: 26pin header with I2C, SPI, UART and multiple GPIO ports ;13pin header with 2*USB Host, IR pin, Tv-out?AUDIO (no MIC) and 3 GPIO ports
Debug serial port: UART-TX?UART-RX and GND
LED: Power led & Status led
IR receiver: Support IR remote control (via 13pin interface board)
Supported OS: Android10?Ubuntu?Debian
Dimension: 53mm×60mm
Weight: 30g
