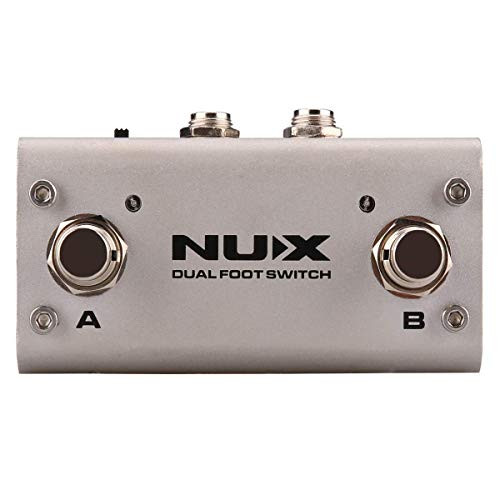

NUX NMP 2 Dual Footswitch AB Pedal A B Pedal Dual Foot Switch

1, Foot Switch A Use this as a switch for the device connected to Jack A or Jack B&A. Refer to "Connections". 2, Foot Switch B Use this as a switch for the device connected to Jack B or Jack B&A. Refer to "Connections". 3, Foot Switch A Indicator When foot switch A is set to the latch type function, this indicator alternately lights or goes out each time the foot switch is pressed. When foot switch A is set to the momentary type function(open or close), thisindicator lights only while the foot switch is held down. 4, Foot Switch B Indicator When foot switch B is set to the latch type function, this indicator alternately lights or goes out each time the foot switch is pressed. When foot switch B is set to the momentary type function(open or close), this indicator lights only while the foot switch is held down. 5, DC Jack The NMP-2 uses 9V (Positive outside, Negative inside) 2.5mm plug to active Latch mode, open mode(also close mode with indicator). 6, Jack A Connect the device being controlled with foot switch A here. Use a connection cable with 1/4” (6.35mm) phone plugs at both ends. 7, Jack B&A Connect devices equipped with TRS or TS 1/4” (6.35mm) phone jacks here. Use a connection cable with stereo or mono 1/4” (6.35mm) phone plugs at both ends. *TS(mono) is for foot switch B only. If you want to operate foot switch A and foot switch B at the same time, you must use TRS(stereo) phone plugs here. 8, Mode Switch This sets the functions for foot switch A and B to LATCH or Momentary( Open , Close). *After referring the owner’s manual for the device you are connecting, switch this to the appropriate setting. Open mode means while you hold the foot switch, the Tip and Sleeve is opened.(using mono cable) Close mode means while you hold the foot switch, the Tip and Sleeve is closed.(using mono cable)
