Specification:

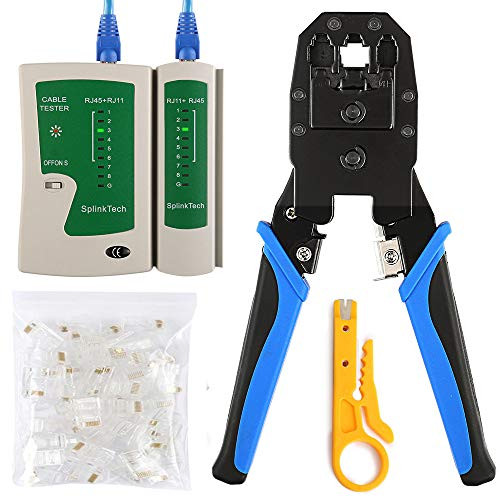

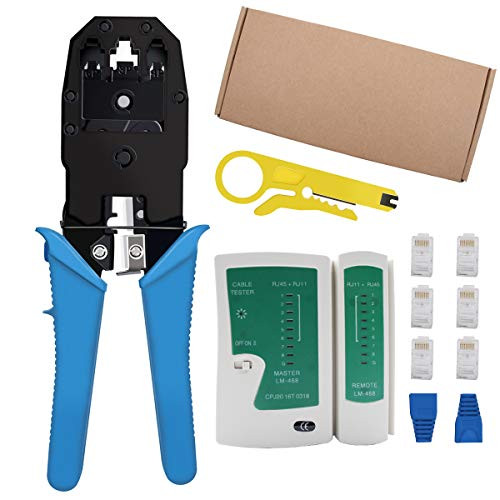

Item Type: Network Repair Tool Kit
Material: 45# Steel
Specification of RJ Connector Crimping Pliers: 4P, 6P, 8P
Tester Battery: 1 x 9V dry battery (delivered without battery)
Applicable Scope of Threading Knife: Telephone line, network line, monitoring line
Scope of Application of Coaxial Stripper: Coaxial cable RG58, RG59, RG62, RG3C, RG4C
Scope of Application of Network Stripper: Round wire (UTP, STP), flat wire and multiple transmission lines Approx. 3.2 to 9mm / 0.13 to 0.35in
Test Method of Cable Tester:
1. Test the twisted pair 1, 2, 3, 4, 5, 6, 7, 8, G one by one (pair) to determine which (pair) is wrong, short or open.
2. Switch OFF is off, ON is normal test speed, and S is slow test speed.
3. Twisted pair test: turn on the power supply, insert the network cable plug into the main tester and remote tester respectively, and the host indicator lights will flash one by one from 1 to G, as shown in the following figure:
Main tester: 1-2-3-4-5-6-7-8-G
Remote tester: 1-2-3-4-5-6-7-8-G (RJ45)
1-2-3-4----------)RJ11)
If the wiring is abnormal, it will be displayed as follows:
a. When a network cable, such as Line 3, is open circuit, the No. 3 lamp on the main tester and remote test terminal does not light up.
b. When several lines are not connected, none of them will light up. When less than two network lines are connected, none of them will light up.
c. When the network cables on both ends are out of order, for example, 2 and 4 lines are out of order, the display is as follows:
The main tester remains unchanged: 1-2-3-4-5-6-7-8-G
Remote test end: 1-4-3-2-5-6-7-8-G
d. When two network cables are short circuited, the main tester will not light up, while the remote test terminal will light up slightly for the two lines that are short circuited. If more than three (including three) lines are short circuited, the lights of all short circuited lines will not light
