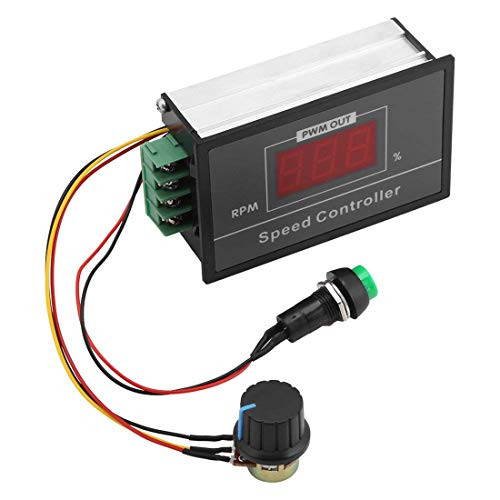

Motor Speed Controller DC10-60V 10V 12V 24V 48V 60V 10A PWM DC Motor Speed Controller Stepless Speed Regulation Start Stop Switch with Digital Display

Features:  1. Wide range of operating voltage: 12V, 24V, 36V, 60V, max. power: 400W.  2. A good speed controller for DC brush motors.  3. High-frequency capacitance, power tube and 10A fuse are used in the module.  4. Adopts sealed and high-quality potentiometer with switch, stable performance.  5. Metal case creates better durability; high efficiency and low noise.  6. Suitable for applications like fans, etc. providing nice adjustment of motor speed.  Specifications:  Operating Voltage: DC 12V/24V/36V/60V  Rated Current: 8A  Max. Current: 10A  Control Power: Max. 400W  Speed Control Range: 10% -100%  PWM Frequency: 21KHz  Item Size: approx.70*40*30mm/2.75*1.57*1.18''  Item Weight: approx.73g  Warm Tips:  1. This speed controller is applicable to DC brush motor, not the DC brushless motor; it can't be used as voltage regulator.  2. It should be connected with DC voltage, don't connect with AC voltage(e.g. 220V AC).  3. The anode and the cathode of DC power cannot be connected reversely, otherwise the controller will be damaged.  4. When running direction is inconsistent with your desire, you can change it by adjusting the linear order.  5. Potentiometer switch can change the output duty cycle of controller and then change the motor speed.  Note:  Please allow 1-3mm differs due to manual measurement.  Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
