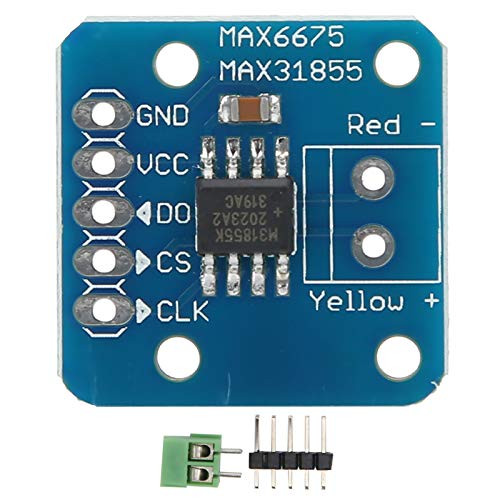

MAX31855 K Type Thermocouple Module High-Speed Transmission Amplifier Precise Temperature Sensor ?200? to plus1350? Measuring

Feature: 1. Thermocouple module, used to detect the temperature difference between the hot and cold ends. 2. High?quality amplifier with cold compensation reference, suitable for sensitive thermocouples. 3. The distributor plate has a chip, and a 3.3V regulator with a 10uF bypass capacitor and a level conversion circuit. 4. Comes with a 2?pin terminal block (for connecting to a thermocouple) and a header (for inserting any breadboard or perforated board). 5. Adopt for SPI interface, high?speed transmission. The measuring temperature range is ?200? ? +1350?, 0.25? high accuracy, reliable use. Specification: Item Type: Thermocouple Module Material: PCB Purpose: Detect the temperature difference between the hot and cold ends Measuring Temperature Range: -200? - +1350? Interface Type: Adopt for SPI interface, high-speed transmission Working Voltage: 3-5VDC Resolution: 14-bit resolution Accuracy: 0.25? Package List: 1 x Thermocouple Module  1 x Terminal  1 x Pin Header
