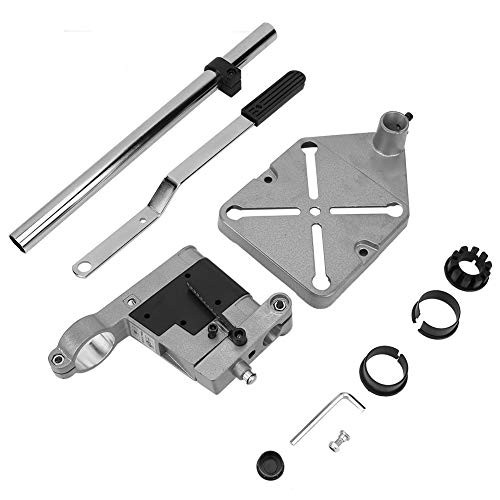

Lukcase Floor Drill Press Stand Table for Drill Workbench Repair Tool Clamp for Drilling Collet,drill Press Table

Features:
Depth gauge
Plastic collar insert Mounting Holes
Allen key & holder - for adjustment
Specification: Type: Iron Bottom Bracket
Min- Max Clamp : 38-43mm?1.48'' or 1.7''? Main Rod : 25*400mm
Size : 400*155*155mm Drilling depth: Up to 60mm
Base: Cast Iron Base Quantity: 1x Drill Bracket (electric drill in the picture is NOT included)
Assembly Place the base on a level floor,Place the column on the base as deeply as use the hex key M8 to tight the two pieces hex bolts on the side of base.(These are 4 holes on the base on the bench) Clamp Drill Machine
Put the Electric Drill machine or Die Grinder into the clamp,according to the size of neck of the machine use different thickness of brush,and use the hex key to tight the clamp lock bolt 8.
Screw the Handle(20) to the feed shaft 21and tighten it. And try to press some times to check the head sliding need,add some grease on the sliding slot and adjust the 3pcs screw 14 on the sliding sporter.
Adjustment of height of Head
According to the workpiece height,Up or down the head assembly,and tight the head lock bolts 9 by hex key.
(unplug the drill before any adjustment of this stand)
Depth Stop
Adjust the height of Point clamp 2 to control the drill Max travel for this stand is 60mm.
Adjust the head to bevel drilling and milling. Loosen the screws 24 between Colum and the Head to desired position,and tighten the screws.adjustment angle is 90 degree.
Trial running machine before operation trial runs machine no loading before any operation.
Warm Reminding:
Before operation,please be advised that your drill and our drill press stand are all assembled securely without no loosen.
