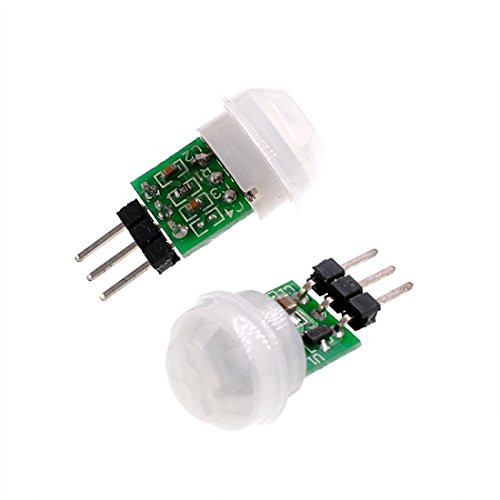

Longdex AM312 PIR Motion Body Human Sensor 2PCS Mini IR Infrared Pyroelectric Detector Module

Product description Specification: Model: AM312 Working Voltage: DC 2.7-12V Static power consumption: less than 0.1mA Delay Time: 2 seconds Blocking Time: 2 seconds Trigger: can be repeated Sensing Range: less than or equal to 100 degree cone angle, 3-5 m (required depending on the lens) Working Temperature: -20 to + 60 degree centigrade Pin: 3 PCB Size: 10 x 8mm/0.39 x 0.31Inch Total size: Approx. 13.5 x 18 mm/0.53 x 0.71Inch(not include the length of the pin) Module Lens: Small Len Package Include: 2 PCS PIR Sensor Module Feature: This product is designed with small and exquisite appearance, full-automatic induction, excellent sensitivity, stable reliability. Stable reliability, ultra low voltage operating mode. Suitable for movement detection, automatic control, proximity switch, electronic theft prevention, safety protection, remote control measurement etc. Repeatable trigger mode: after induction output high level, the time delay period, if there is the human body in the scope of its induction activities, its output will always keep a high level, until the people left after the delay, it becomes low level (that is, the sensing module automatically delays a delay period after detecting each activity of the human body, and takes the time of the last activity as the starting point of the delay time).
