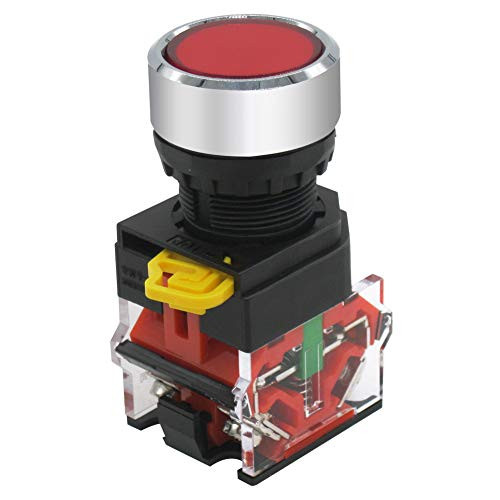

LAY7 -PBCY090- LAY37 11BN Red 10A 660V Momentary Push Button Switch

Name: button switch Color: Red Opening size: 22MM Contact form: normally open (green), normally closed (red). 1, technical parameters 2, the use of the environment Switch rating: AC-15 36V/10A 110V/10A 220V/5A 380V/2.7A660V/1.8A DC-13 24V/4A 48V/4A 110V/2A 220V/1A 440V/0.6A Prescribed heating current: 1th 10A Knob is more than 300 x 104 times. The key button is more than 5 x 104 times. Emergency button is equal to 5 x 104 times ambient air temperature: -25 ~ +40 C. Altitude is less than 200m The relative air temperature is less than 90%. Installation method I open the button cover with the screwdriver and screw the aluminum nut down. II. Insert the lower part of the switch into the panel hole. III. screw the nut and insert the button cover. Item specifics: Item type: Switches Certification: EMC,CCC Switch type: Push Button Switch Features: NEW Material: PLASTIC Current: 10A Model number: LAY37 Warranty: 1YEAR
