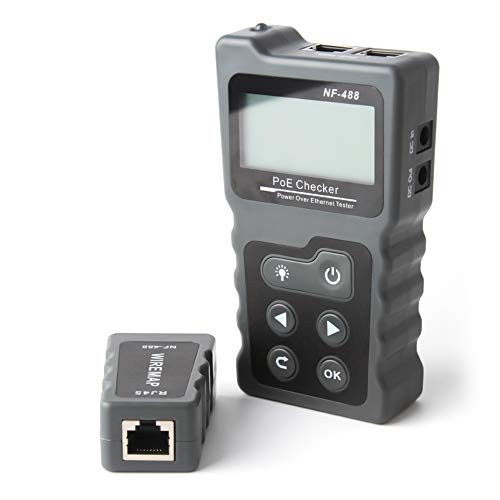

Kolsol PoE Checker Inline PoE Voltage and Current Tester with Cable tester PoE Network Tester NF 488

Features 1. Test Criteria: Test information on standard PoE devices such as standards, supply voltage, power polarity and mode. 2. Detection voltage: Determine the power supply voltage, power polarity and mode of non-standard PoE equipment. 3. Detecting the network: Check for shorts, crossovers and open circuits in the network cable. 4. Detect current: Test the current, voltage and power consumed by the DC appliance. 5. Detection switch: Loopback test function of the switch. Transmitter specification Indictor:LCD 128x64 mm, with back light Continulity function Cable types:CAT5,CAT6 Check UTP/STP cable:YES Cable short indicate:YES Max testing range:600m Wire mapping:Emitter +Remote Emitter + switch/routor PoE function Test range:DC5-60V POE switch Standard identify:802.3af/at ( standard/non-standard) Test range power:0-18W Output interface:YES Power function Voltage test range:DC0-60V Current test range:0-3A Power test range:0-180W Input voltage protection:DC48V 5mA Max working current:?80mA Loopback:Compatible with 10M ,100M,1000M switch Power supply:3*AAA Remote Specification Ports:RJ45 Function:Wire mapping for network cable Input voltage protection:DC48V 5mA
