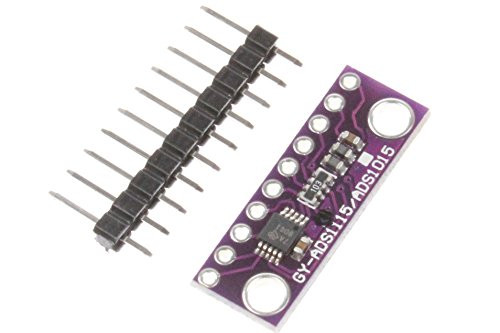

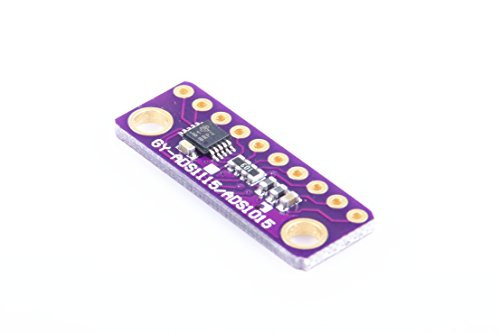

KNACRO ADS1115 16 Byte ADC Module Precised Analog Digital Converter Develop Board

WIDE SUPPLY RANGE: 2.0V to 5.5V bits of resolution offered in an ultra-small, leadless. LOW CURRENT CONSUMPTION: QFN-10 package or an MSOP-10 package. The ADS1113/4/5 are designed with precision, power, and Continuous Mode: Only 150?A ease of implementation in mind. The ADS1113/4/5 Single-Shot Mode: Auto Shut-Down feature an onboard reference and oscillator. PROGRAMMABLE DATA RATE: transferred via an I2C-compatible serial interface; four 8SPS to 860SPS I2C slave addresses can be selected. INTERNAL LOW-DRIFT ADS1113/4/5 operate from a single power supply VOLTAGE REFERENCE ranging from 2.0V to 5.5V. INTERNAL OSCILLATOR The ADS1113/4/5 can perform conversions at rates. INTERNAL PGA up to 860 samples per second (SPS). PORTABLE INSTRUMENTATION automatically powers down after a conversion and greatly reduces current consumption during idle. ADC Bit rate: 16 Bit Interface Type: I2C Channels: 4 Channel AN0 AN1 AN2 AN3 or 2 differential inputs Input voltage: 2.0-5.5v Channel input voltage :0-VDD Continuous Mode: Only 150?A Single-Shot Mode: Auto Shut-Down PROGRAMMABLE DATA RATE:8sps-860sps Input range programmed control, 7 types input ranges: -0.256V ~ + 0.256V, -0.512V ~ + 0.512V, -1.024V ~ + 1.024V, -2.048V ~ + 2.048V, -4.096V ~ + 4.096 V, -6.144V ~ + 6.144V I2C 7-bit addresses between 0x48-0x4B Package Included: 1 X ADS1115 ADC Module 1 X Pin
