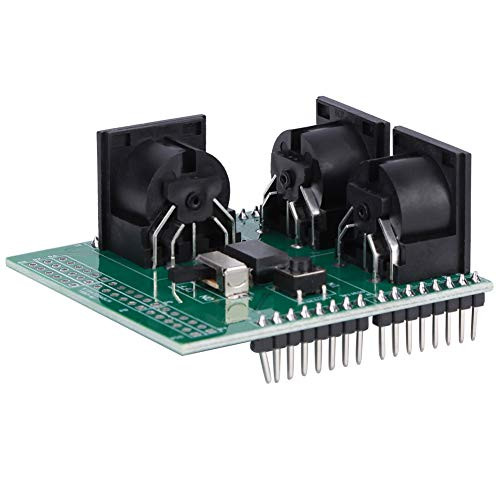

KIKYO MIDI Shield Module- Digital Interface Adapter Testing Accessories Electronic Measuring Instrument- MIDI Module Instrumentation

Feature:1. Through the MIDI adapter board, other microcontroller can access the powerful MIDI communication protocol. The MIDI protocol and asynchronous serial interface have many similarities, so users can use the microcontroller UART pins to send MIDI event messages. 2. The MIDI adapter board provides MIDI?IN and MIDI?OUT connections and MIDI THRU ports. The MIDI?port is light IN isolation to prevent ground loops. The MIDI adapter board can be installed directly like the shield on the top of the board: connect MIDI?IN/THRU to the hardware RX pin, and connect MIDI?OUT to TX. Its data and analog pins, power bus and bus can be transferred out. 3. The RUN / PGM switch allows users to program the serial port of the for board without disassembling the board. Note: The three?hole MIDI connector is not soldered on the MIDI adapter board, but these connectors are included in this product. 4. The 2.54mm pin headers on both sides of the extension can be easily connected to your project. Simple to operate. MIDI IN switch, you can turn off data reception. 5. Made of high?quality PCB material, safe and durable in use, has a long service life. Small and pratical, rapid and efficient. Specification: Condition: 100% Brand NewItem Type: MIDI ModuleMaterial: PCB Pin Length: Approx. 2.54mm / 0.1in Package List:1 x Serial Port to MIDI Module
