100%Brand New and High Quality

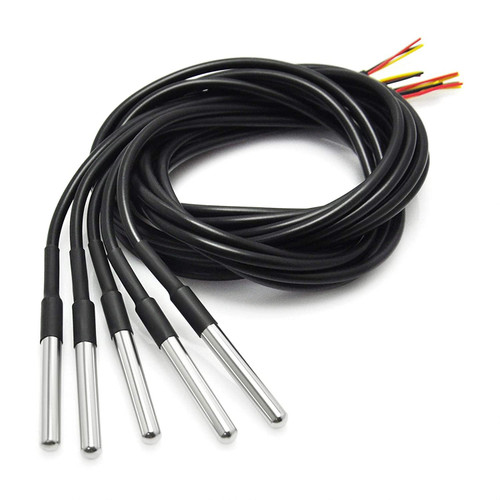

Here is a DS18B20 original chip,three wire temperature sensor
High quality stainless steel tube encapsulation waterproof moistureproof prevent rust Stainless steel tube
size:Approx.6*50mm(Diameter*Length)
9 ~ 12 adjustable resolution
Power supply range:3.0V-5.5V
Operating temperature range: -55°C - +125°C (-67°F - +257°F)
Storage temperature range: -55°C to - 125°C (-67°F - +257°F)
Accuracy over the range of -10°C to +85°C: ±0.5°C.
No other components, unique single bus interface
Output lead:red (VCC), yellow(DATA) , black(GND)
Cable length:Approx.100 cm
Color:As shown
