Product:
T-Display V1.1 _G511-01
Specifications
+Chipset : ESPRESSIF-ESP32 (Wi-Fi & Bluetooth)240MHz Xtensa single-/dual-core 32-bit LX6 microprocessor
+Modular interface : UART?SPI?SDIO?I2C?LED PWM?TV PWM?I2S?IRGPIO?ADC?capacitor touch sensor?DACLNA pre-amplifier
+FLASH : QSPI flash 4MB
+USB to TTL : CP2104
+Display : IPS ST7789V 1.14 Inch
+Working voltage : 2.7V-3.6V
+Working current : About 67MA
+Sleep current : About 350uA
+Working temperature range : -40? ~ +85?
+Size&Weight : 51.52*25.04*8.54mm(7.81g)
Power Supply Specifications?
Power Supply : USB 5V/1A
Charging current : 500mA
USB : Type-C
JST Connector : 2Pin 1.25mm
?Note:NOT welded before shipment , NOT include battery?
shipping list:
T-Display*1
Charging Cable*1
Pin*2

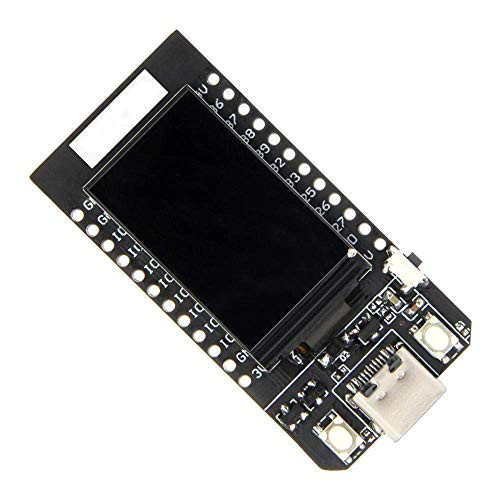

ICQUANZX T-Display ESP32 WiFi and Bluetooth Module Development Board for Arduino 1.14 Inch LCD
Was:
$57.88
Now:
$28.94
- SKU:
- N341666
- UPC:
- 8414745415791
- Condition:
- New
- Availability:
- Free Shipping from the USA. Estimated 2-4 days delivery.
