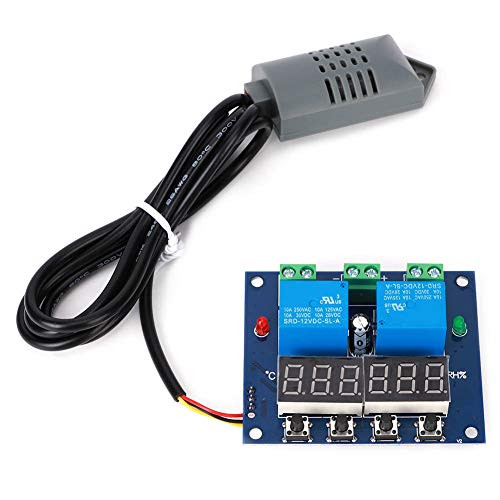

Product description
Temperature and Humidity Controller features to temperature controller, humidity controller, auto adjust working mode, calibration and come with two high precision digital display
and accurate humidity temperature sensor, surpporting UART pass and Micro USB input, can be wide wide used for cabinet control, seedling heat mat, aquarium, pet breeding,
incubation, BBQ, electric radiator, electric oven, tobacco industry, etc.
Features:
Support UART and Micro USB input;
Measurement temperature and humidity at the same time;
Two LCD high definition display;
Auto adjustment of working mode ;
High precision detection;
Temperature and humidity calibration function.
How to use:
Step 1: Connect sensor to controller;Step 2: Connect to power supply to controller;Step 3: Adjust Start Temperature,Stop temperature and Temperature Correction;Step 4: Adjust Start Humidity,Stop Humidity and Humidity Correction;Step 5: Enable relay output according requirement;Step 6: Remove power supply; Step 7: Connect to load with power supply at relay output terminal if need at Step5; Step 8: Connect to power supply for controller again;Step 9: Test and working!
Note:
It is a relay output mode and cannot be used as a power module. It cannot output voltage. The load needs to be connected to a separate power supply.
Parameters:
Product name: Humidity Temperature Controller;
Model: XY-TR01;
Temperature range:-20?~60?;
Humidity range:0%-100%RH;
Control precision:0.1? & 0.1%RH;
Output type:Relay output;
Rated load: 10A(MAX);
Size of Controller:60*58*22mm
Size of Sensor probe:60*30*20mm
Length of Sensor cable:1meter
Package include:
1* XY-TR01 Humidity Temperature Control
