Overview
- HM-10 is a Bluetooth Low Energy (BLE) module built on the powerful and programmable Texas Instruments CC2541 chipset. Huamao Technology is the developer of the board and the firmware, although there are several clones available in the market. The module offers an on-board voltage regulator and is TTL-level and 5V tolerant. The Bluetooth-SoC can be accessed via UART interface and supports AT-Commands for setup. It supports full Bluetooth 4.0 standard and can be used for your Arduino or microcontroller to iOS communication projects.This module can be used to replace HC-05, HC-06 and HC-07 devices.This module can also be configured and used as an iBeacon for used with Apple devices.
Features:
- HM-10 by Huamao Technology
- BT Version: V4.0 BLE bluetooth
- Firmware: V540
- USB Protocol: USB V2.0
- Working frequency:2.4GHz ISM band .
- Modulation method: GFSK(Gaussian Frequency Shift Keying) .
- RF Power:?4dBm, Class 2 .
- Sensitivity:?-84dBm at 0.1% BER .
- Transmission Rate: Asynchronous: 6 kbps; Synchronous: 6 kbps
- Security: Authentication and encryption .
- Support Service: Central & Peripheral UUID FFE0, FFE1
- Working temperature:-5 ~ +65 Centigrade
- The power can be adjusted -23dbm, -6dbm, 0dbm, 6dbm, through an AT Command (AT+POWER).
- Flash:256Kb
- Long range: there is 100 meters in open space with iphone4s
- Power: 0.5 mA for standby, Active 8.5 mA,
- Supports auto sleep.
Package included:

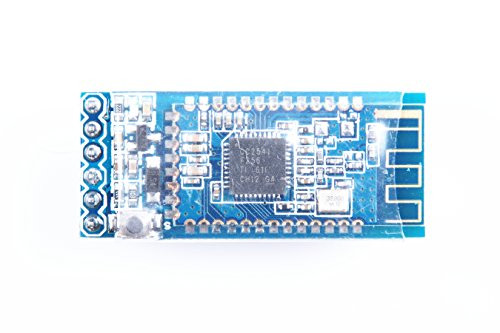

- 1x HuaMao HM-10 BLE Bluetooth 4.0 Serial Wireless Module with Base Board
