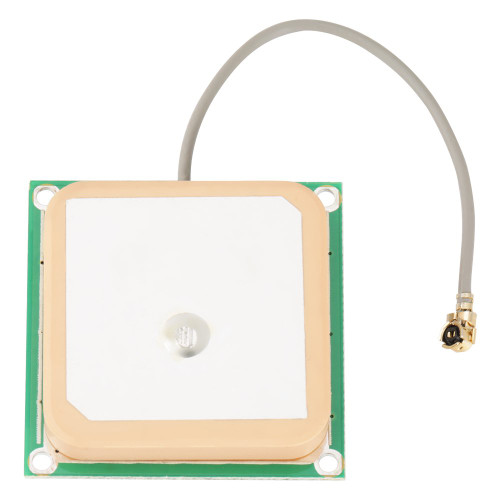

High Gain GPS Active Antenna Ceramic Patch Internal 25 25 8mm 28dB Connector with Cable

Specifications: Center frequency: 1575MHZ Voltage standing wave ratio: 2:1 Bandwidth: ±30 MHz Impedance: 50? Maximum gain: >3dBic Based on 7×7cm Gain range: >-4dBic at -90°<0<+90° Antenna polarization: RHCP Amplifier gain: 32dB Noise figure: 1.5dB Filter out-of-band attenuation: 7dB Min f0+/-20MHz; 20dB Min f0+/-50MHz; 30dB Min f0+/-100MHz Output voltage standing wave ratio: <2.0 DC voltage DC: 3V---5V Power consumption: 10mA Weight: 7 (g) Dimensions: 28X28X6.5mm Cable length: 5/10/20cm custom Connector Model: IPEX Line color: black Working temperature: -40°C~+85°C Waterproof test: through Humidity: 95 hundred to 100 hundred RH Package included: 1 x Antenna with cable
