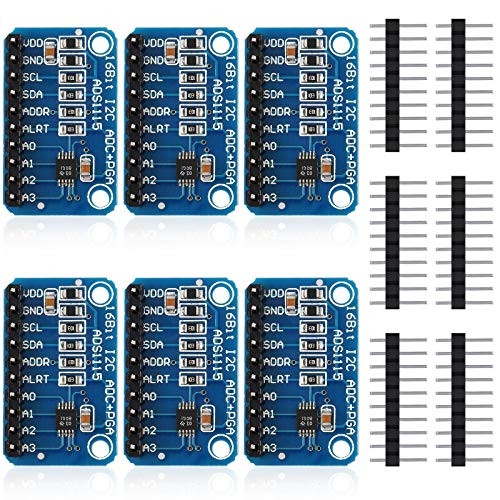

High ADC Module ADS1115 16-Bit ADC Converter Development Board Kit Analog to Digital Module for Raspberry Pi

1. For micro?controllers without an analog?to?digital converter or when you want a higher? ADC, provides 16?bit at 860 samples/second over I2C. 2. The chip can be configured as 4 single?ended input channels, or two differential channels. 3. As a nice bonus, it even includes a programmable gain amplifier, up to x16, to help boost up smaller single/differential to the full range. 4. We like this ADC because it can run from 2V to 5V power/logic, can measure a large range of and its super easy to use. It is a great general purpose 16 bit converter. 5. The chip's fairly small so it comes on a breakout board with ferrites to keep the AVDD and AGND quiet. Interfacing is done via I2C. The address can be changed to one of four options (see the data?sheet table 5) so you can have up to 4 connecte Spec: Features: For micro-controllers without an analog-to-digital converter or when you want a higher- ADC, provides 16-bit at 860 samples/second over I2C. The chip can be configured as 4 single-ended input channels, or two differential channels. As a nice bonus, it even includes a programmable gain amplifier, up to x16, to help boost up smaller single/differential to the full range. We like this ADC because it can run from 2V to 5V power/logic, can measure a large range of and its super easy to use. It is a great general purpose 16 bit converter. The chip's fairly small so it comes on a breakout board with ferrites to keep the AVDD and AGND quiet. Interfacing is done via I2C. The address can be changed to one of four options (see the data-sheet table 5) so you can have up to 4 connected on a single 2-wire I2C bus for 16 single ended inputs. Four single-ended or two differentialinputs. Programmable comparator; internal low-driftvoltage reference; internal oscillator; internal PGA. This board/chip uses I2C 7-bit addresses between 0x48-0x4B, selectable with jumpers. Specifications: Wide Supply Range: 2.0v to 5.5v;
