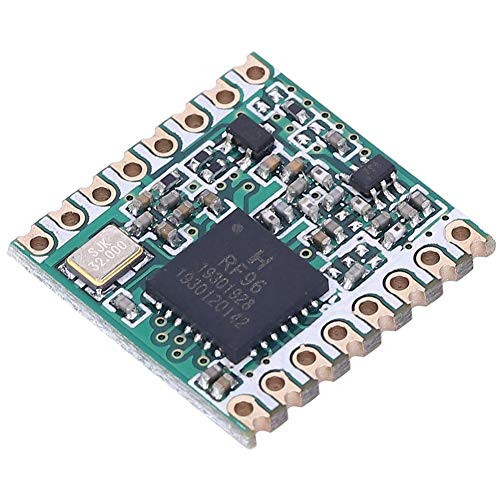

Garosa LoRaTM Range Transceiver Wireless Transceiver Module Remote Communication Board Remote Communication Module

Specification: Item Type: Wireless transceiver LoRaTM: Remote communication module Maximum Link Budget: 168dB Stable Transmit Power and Operating Voltage: +20 dBm-100 mW High Efficiency PA: +14 dBm Programmable Rate: Up to 300kbps High Sensitivity: Minimum -148 dBm Bulletproof Front End: IIP3=-12.5dBm Receive Current Low: 10.3 mA, in Register Save State: 200 nA Highly Integrated Synthesizer Resolution: 61Hz Modulation Mode: For FSK / GFSK / MSK / GMSK / LoRaTM / OOK modulation mode Built-in Bit Synchronization Equipment: Achieve clock recovery detection: Support RSSI Dynamic Range: 127dB Automatic: Detection and CAD, ultra-fast automatic frequency control Data Packet for BUFFER: Up to 256B, comes with CRC Built-in: Temperature sensor and low battery detection indication Module Size: Approx. 16 x 16mm / 0.6 x 0.6in Package List: 1 x Wireless Transceiver Module
