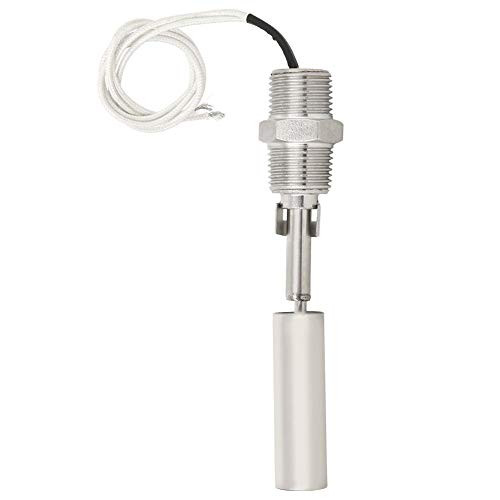

Float Switch Liquid Level Controller Stainless Steel Side Mount Water Level Sensor DC0-220V Liquid Level Sensor

Specification: Item Type: Duckbill Float Switch Contact Capacity: 10W(low pressure) / 50W (high pressure) Working Voltage: 0-220(V) Working Current: 0.5-1.5(A) Maximum Temperature Resistance: 120(?) Maximum Withstand Voltage: 0.2(Mpa) Material: 304 stainless steel Thread: G1/2" Size: Approx. 108 x 17 x 55.5mm / 4.3 x 0.7 x 2.2in 15mm / 0.6in Working Principle: The small float switch, small liquid level controller and liquid level sensor are mainly composed of a magnetic reed switch and a float. There are magnetic materials in the float. When the float moves up and down with the measured liquid level, the magnetic reed switch is touched to detect the liquid level position. Package List: 1 x Duckbill Float Switch
