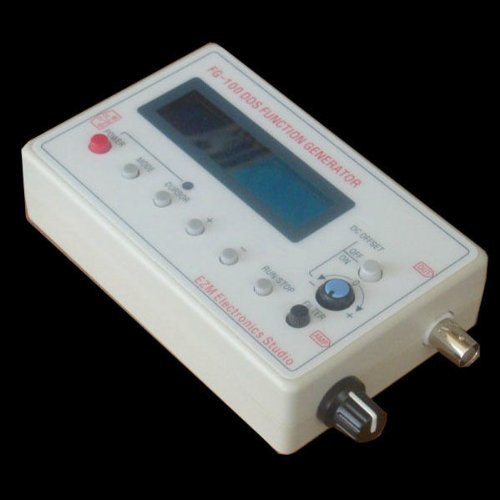

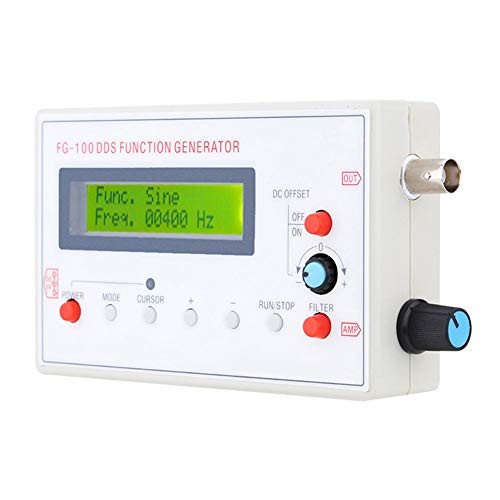

FG-100 1Hz-500KHz DDS Function Signal Generator Frequency Counter Signal Source Module Sine Square Triangle Sawtooth Waveform

Specification: Frequency Range: Sine wave 1Hz~500kHz (Magnitude is flat up to 200kHz, above 200kHz, the magnitude may drop as frequency increases), other waveforms 1Hz-20kHz with good phase noise and small distortion, if you don't care the phase noise and distortion, it can output full frequency range. Resolution: 1Hz Output Waveforms: Sine wave, square wave, triangular wave, forward sawtooth wave, reverse sawtooth wave. Sinewave Distortion: 1% (frequency <1kHz); 0.5% (frequency >=1kHz) Output Amplitude: Maximum ±10V(P-P). Output Impedance: 50 ohm DC Offset: Maximum ±10V, can be disabled Internal Filter: For sinewave or pulse, can be turn on/off Power Supply: DC3.5-10V. DC 5V adaptor or 3.7V Lithium battery is recommended. Weight: Approx.172g/6.1oz Package: 1 x Function Generator 1 x USB Cable 1 x Instruction Manual
