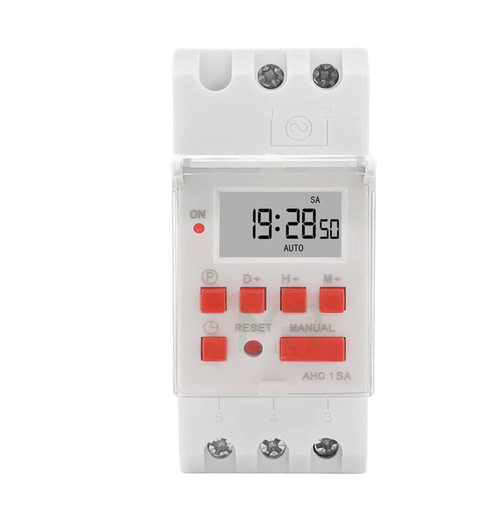

FEHAUK Thc15a AHC15A Din Rail Timer Relay time switches Weekly programmble Electronic TIME Switch 220V Bell Ring Device ok (Color : Red, Size : 12V)

Model number THC15A
Supply voltage 220Vac,110Vac,50/60Hz;12Vac/dc,24Vac/dc
Current:30(20)A 240V AC
Power consumption 1W Max
Error correction 1s/days(25 degree C)
Setting method Touch switch
Indication method LCD
Time range 1min to 168h
Power reserve 60 days
Inner battery 1.2V40Ma(Rechargeable)
ON/OFF operation 17 ON/OFF(day/week)
External dimensions 86.5x36x65.5 mm
Mechanical life 1x107
Electrical life 1x107
Operating temperature -20 to 55 degree C
Operating humidity 35-85%RH max,non-condensing
Alias name THC15A electronic timer
