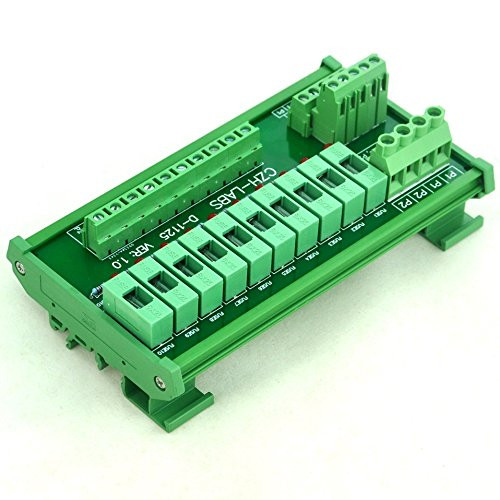

Electronics-Salon DIN Rail Mount 10 Position Power Distribution Fuse Module Board, For AC/DC 5~48V .

DIN Rail Mount Power Distribution Fuse Module Board. Specification: Work voltage: AC or DC 5~48V, total current rating 40Amp. PCB Dimensions: 150mm x 72.5mm x 29mm (W x L x H). Module Dimensions: 153mm x 87mm x 53mm (W x L x H). Input terminals: pitch - 7.62mm/0.3", current 30A for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw. P1 output terminals: pitch - 5.08mm/0.2", maximum current 10A for per position, wire size 26~12 AWG, stripping length 7mm, Metric M2.5 slotted screw. P2-1 to P2-10 output terminals: pitch - 7.5mm/0.295", maximum current 6.3A for per position, wire size 26~12 AWG, stripping length 7mm, Metric M2.5 slotted screw. Fuse holders for 5x20mm(DxL) tube fuse, factory-installed fuses T6.3Amp. with fuse fail indication function FR-4 fiber glass PCB, dual copper layers. fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for panel mount use. ?
