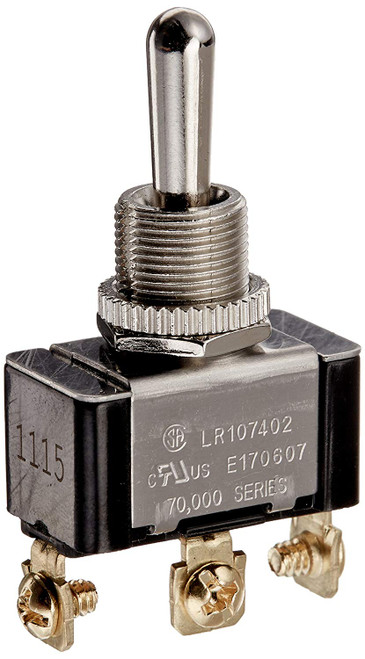

Eaton XTD2B2A Toggle Switch Screw Termination On-Off-On Action SPDT Contacts

This Eaton XTD2B2A toggle switch is rated for 20 amp at 125 VAC, 10 amp at 277 VAC, 3/4 hp at 125 to 250 VAC, and has three switching positions (on, off, and on) with maintained switching action for sustained operation of the circuit. It is a single-pole, double-throw (SPDT) switch with brass screw terminals for a secure connection to the circuit. It is Restriction of Hazardous Substances (RoHS) compliant for hazardous substances, and Underwriters Laboratories (UL) and Underwriters Laboratories of Canada (cUL) Recognized for quality assurance. This toggle switch is suitable for use in commercial and industrial equipment, household appliances, medical equipment, telecommunications, and other applications. Specifications Switch type Three-position toggle Mount Threaded bushing with 32 threads per inch Keyway 1.8 mm in down position Contacts SPDT Positions On-off-on Switching action Maintained Base material Thermoset molding material Power rating 20 amp at 125 VAC, 10 amp at 277 VAC, 3/4 hp at 125 to 250 VAC Contact resistance 50 Ohm maximum Dielectric strength 1,500 VAC, 1 minute Terminal type Screw Terminal material Brass Ingress Protection (IP) rating IP40 Operating temperature range 0 to 65 degrees C Bushing length 11.9 mm Lever length 16.5 mm Body dimensions* 28.6 x 16 x 17.2 mm (L x W x D) Standards met RoHS compliant, UL and cUL Recognized * L is length, the horizontal distance from left to right; W is width, the horizontal distance from front to back; D is depth, the vertical distance from top to bottom. Eaton manufactures electrical, hydraulic, and mechanical power equipment. The company, founded in 1911, is headquartered in Dublin, Ireland.
