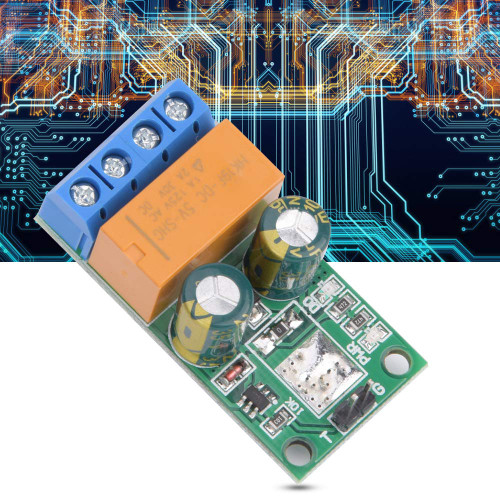

DR55B01 DC Motor Forward/Reverse Controller Board- Self-Locking Reverse Polarity Relay Motor Control Module -DC 6-24V-

Specification: Item Type: CW/CCW Controller Module Optional Input voltage: DC 5V (5V version), DC 6-24V (12V version) Module working current: forward 2MA, reverse 35-40MA Load voltage: equal to output voltage Load current: maximum. 2A (motor <= 1A) With power indicator and reverse polarity indicator Control mode: low pulse control Size: Approx. 43 x 21 x 16mm / 1.7 x 0.8 x 0.6in Weight: 13.5 g / 0.5 oz(approx.) Pin description: I +: power input +; I-: voltage input-; O +: power output + (The output in reverse polarity is-); O-: power output-(The output in reverse polarity is +); G: trigger signal ground; T: trigger signal input (0.2-2 seconds low pulse). Instructions: 1 After power on, output = input, press the trigger button, reverse polarity output, trigger the button again, output = input, third trigger button, reverse polarity output. And so on. 2 Turn off the power and stop the output. Package List: 1 x CW/CCW Controller Module Note: 1. For the module to work stably, be sure to use a power supply that is twice the load power. If the load is a motor, use a power source with more than 3 times the power. 2. The maximum load current is 2A. If it is a load motor, the maximum load current is 1A. 3. The module can only control forward and reverse (start and stop are controlled by power on and power off)
