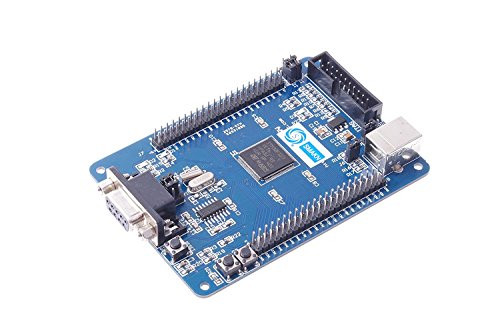

DollaTek ARM Cortex-M3 Mini stm32 stm32F103ZEt6 Cortex Development Board 72MHz/512KFlash/64KRAM

Technical parameters PWM Resolution 16bit PWM Number of units 2 RAM size 64 kB Channel 1 USB device Typical Operating Supply Voltage 2.5, 3.3 V Mounting Type Surface Mount Width 20.2mm LQFP package type Dimensions 20.2 x 20.2 x 1.45mm Pin Count 144 RISC instruction set architecture 32bit data bus width Minimum Operating Temperature -40 °C The maximum number of CAN channels 1 The maximum number of I2C channel 2 The maximum number of LIN channel 0 The maximum number of PCI channel 0 The maximum number of SPI channel 3 The maximum number of UART channel 0 The maximum number of channels 5 USART The maximum operating temperature of +85 °C The highest frequency of 72MHz ADC 3 (21 x 12-bit) 12bit ADC resolution The number of analog to digital converter unit 3 ADC channel 21 Program Memory Size 512 kB Program Memory Type Flash STM32 family name 2 a pulse width modulation (16) (motor control) Core ARM Cortex M3 devices Timers 6 x 16 Timer Resolution 16bit The number of timer 6 Length 20.2mm 1.45mm height Package Included: 1 x development board
