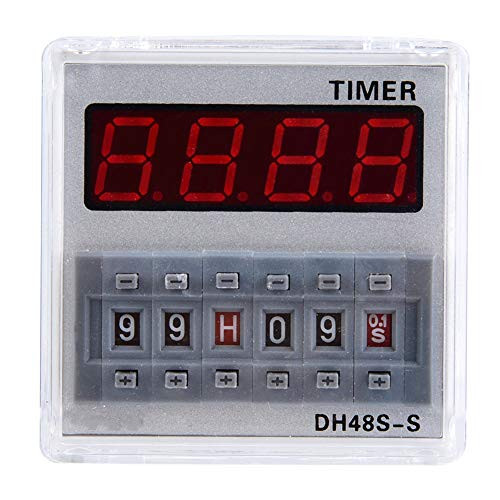

DH48S-S 0.1S-99H Programmable Delay Time Relay Timer 8-Pin Time Relay Long Servicing Life Delay Time Relay for Remote Control 12VAC DC

Features: High quality ABS outer case, resistant to impact and not easy to deform. Clear LED display for accurate timing control. Time range can be set freely by the dial switch. Equipped with a transparent cover to protect the control panel. Widely applied to remote control, communication, automatic control, mechatronics and so on. Specification: Model: DH48S-S Working Voltage: 12V AC/DC, 24V AC/DC, 380VAC (Optional) Contact Capacity: AC220V 5A (resistive); DC30V 5A (resistive) Power Consumption: ?5W Delay Range: 0.1S-99H Delay Control Accuracy: ?0.3%±0.05s Mechanical Life: ?10,000,000 Electrical Life: ?100,000 Ambient Temperature: -10?~50? Package Weight: Approx. 112-179g   Package list: 1 * Time Relay
