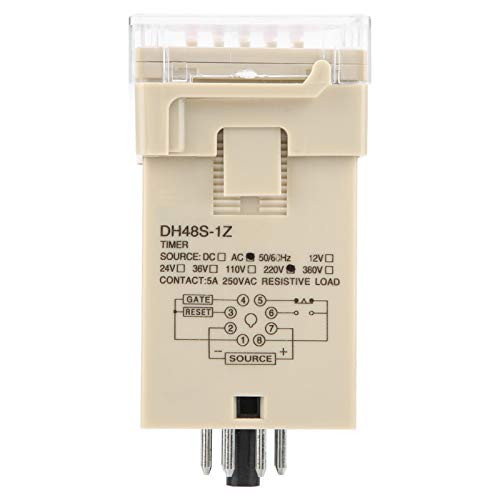

DH48S-1Z Digital Delay Timer Relay, AC 220V 10A Switch-on delay for Remote Control, Communication, Automatic Control and mechatronics

Features: 1. This is a delay relay for the digital display with timing turn-on function. 2. Adjustable delay time from 0.01S to 99H99M with the button 3. High quality plastic housing, and dustproof. 4. High precision, low power consumption, long life. 5. Quickly equipped cabling base. easy to wire. 6. Widely used in automated control circuits such as remote control, communication, automatic control, mechatronics, etc. specification: model: DH48S-1Z working mode: switch-on delay time range: 0, 01S-99H99M Delay error: ?1% Nominal voltage: AC 220V Nominal current: 10A Number of contacts: 1 group of delay contacts with reset pause Contact load: Medium power Contact capacity: AC 250V 3A ohmic Contact switching current: 10A Contact switching voltage: 220V Contact life: 100000 times 3C nominal voltage range:
