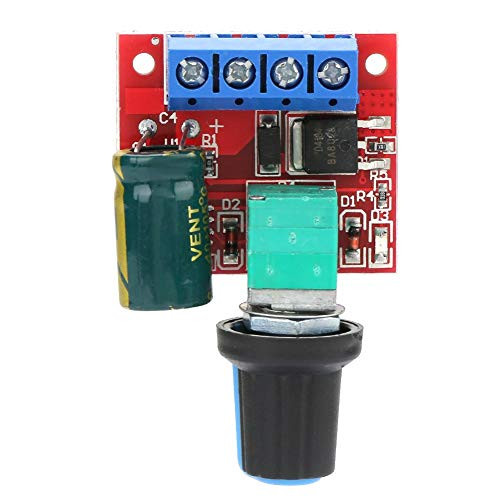

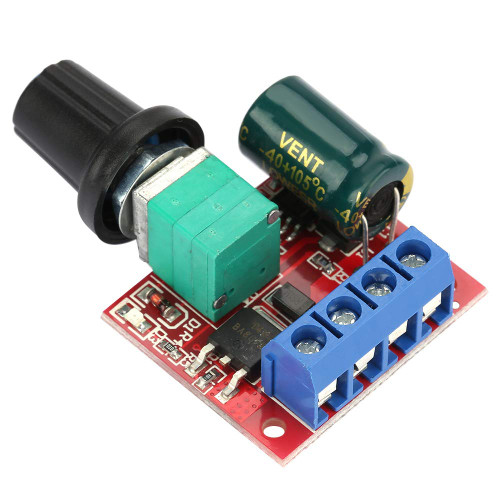

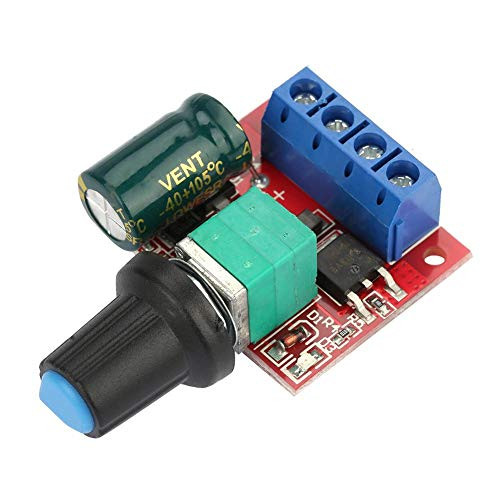

DC Motor Speed Controller Switch 5V-28V 5A PWM DC Motor Speed Control Switch Controller Volt Regulator LED Dimmer

Specification: Item Type: PWM Motor Speed Control Switch Material: Electronic Components Working Voltage: DC 4.5V-28V Output current: 0-5A Output power: 90W (maximum) Quiescent current: 7uA (standby state) PWM duty cycle: 1%-100% PWM frequency: 20khz Weight: Approx. 16g Package list: 1 x Motor Speed Controller Switch Notes: The input of the DC motor governor is DC power, and it is not directly connected to AC power (for example: household 220V AC), otherwise it will burn out! ! ! Do not reverse the positive and negative terminals of the DC power supply, otherwise the governor may be damaged. The motor can be positive or negative. When the running direction is inconsistent with the expectation, the direction can be changed by adjusting the line sequence. Adjusting the potentiometer knob changes the governor output duty cycle and the motor speed changes.
