DC 6 30V Digital LED Relay Board Cycle Timing Circuit Switch Timer Delay Trigger Module Micro USB 5V

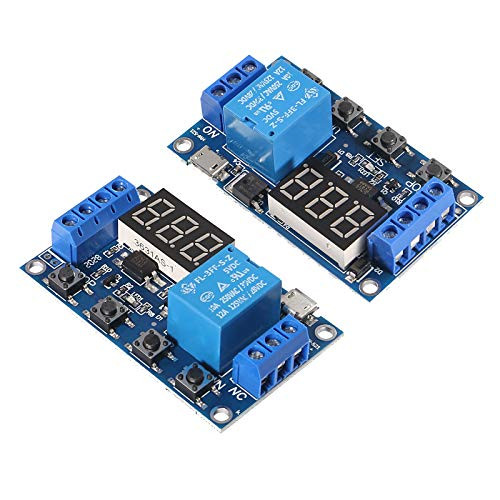

This is a timer delay trigger module with LED display. The module has 6~30V wide voltage, and it supports micro USB 5.0V power supply. The time adjustable range is from 0.1s to 999 minutes, so you can easily adjust the time according to your need. Besides, you can set different OP, CL, LOP parameters, and these parameters were independent of each other and saved respectively. Even when there is a power failure, all set parameters can be automatically saved. Specifications: Voltage: 6V~30V(support micro USB 5.0V) Trigger Signal Source: High voltage level trigger(3.0V~24V), signal ground and system ground are not connected to improve system anti-interference ability(or you can connect them). Load Capacity: DC 30V 5A, AC 220V 5A Quiescent Current: 20mA Operating Current: 50mA Operating Temperature: -40?~85? Size: 6.2×3.8×1.7cm / 2.44×1.49×0.67" Timing Range: 0.1seconds to 999 minutes(continuously adjustable) Package Includes: 1×Timer Switch Module
