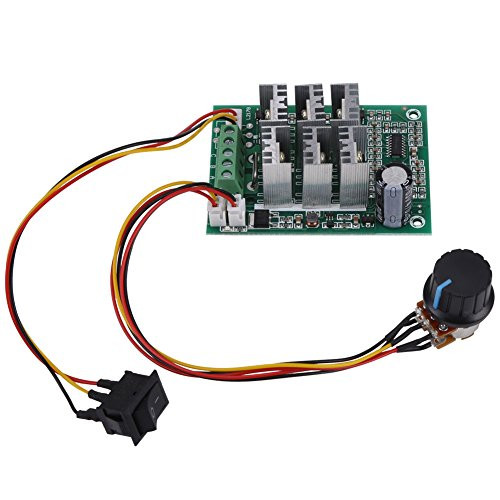

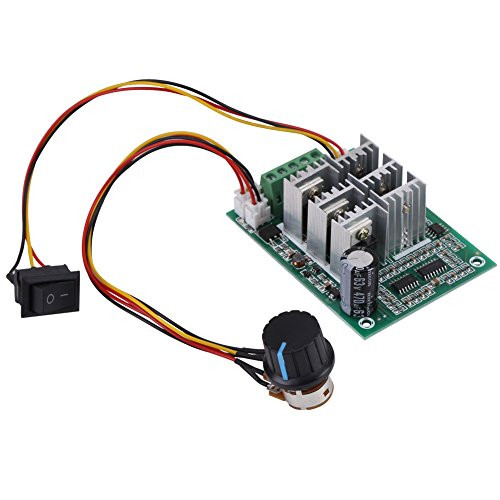

DC 5V 36V 15A 3 Phase Brushless Motor Speed Controller Motor Control Board CW CCW Reversible Switch Motor Driver Control Regulator Module

Descriptions: This speed controller switch is for 3-Phase brushless motor, and support motor CW CCW, stable performance, simple and most cost-effective multi-function operation.The speed of the motor can be regulated by the potentiometer, easy to use. Features: This speed controller switch is for 3-Phase brushless motor, and support motor CW CCW Stable performance, simple and most cost-effective multi-function operation. The speed of the motor can be regulated by the potentiometer, easy to use. With wide voltage range, DC5-36v, and protective current is 15A. Small size and elegant appearance. Specifications: Input voltage: DC5-36v Output current: <15A Protective current: 15A CW CCW: support Speed regulating mode: potentiometer (270 degree linear) Speed adjustment range: 0-100% support for Motor: brushless motor Connection type: fence type terminal Knob specification: 100K (with switch) Module size: 8 x 6 x 2.8cm/3.15 x 2.36 x 1.1inch Weight: 87g Package Included: 1 x Motor Speed Controller Note: 1.The input voltage must be divided into positive and negative and cannot enter 220V home power 2.The input voltage shall be equal to the rated voltage of the motor (5-36v). 3. Motor line ABC,no sequence of distinction
