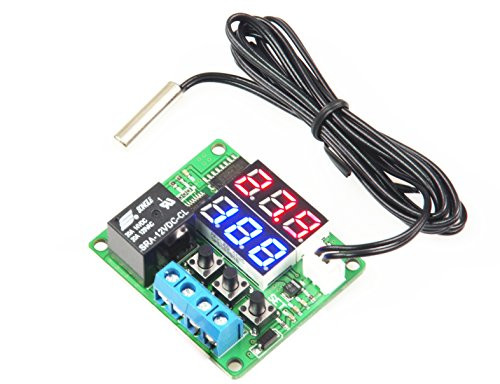

DC 12V Digital Temperature Display Module Sensor Relay Switch Control -20-100 centigrade DIY Electronic Module

SCM control, intelligentize, easy operation, low power consumption Outage setting, automatic memory Control accuracy 0.1 ° Size: Approx. 67 x 42 x 18mm / 2.64 x 1.65 x 0.71 inch Patch Cord Length: Approx. 1M / 39.37 inch, 2 pin port Technical parameters: Temperature Control Range: -20-100° Resolution Ratio: -9.9~99.9: 0.1°, other temperature is 1° Temperature Measurement Accuracy: 0.1 ° Control Accuracy: 0.1 ° Return Difference Accuracy: 0.1 ° Refresh Rate: 0.5 S Input Power Supply: DC 5V, DC 12V, DC 24V Measuring Inputs: NTC(10K 0.5%)waterproof sensor Output: 1 channel relay output, capacity =20A 125VAC,20A 14VDC Environmental Requirement: -10~60°, humidity: 20%-85% Size: Approx. 48.5 x 40mm / 1.9 x 1.5 inch Overall Power Consumption: Quiescent current: ?10MA, operating current ?65MA Indicator Light Direction: Flash shows start-up delay of refrigeration or heating, keep lighting shows the relay has closed Nixie Tube: LL state shows open for sensor; please connect the sensor base on instruction, HH state shows exceed measurement range, temperature controller would peremptory turn off the relay, --- state shows high temperature alarm Package included: 1 x DC 12V Relay Switch Control Digital -20 to100° Temperature Display Module Sensor
