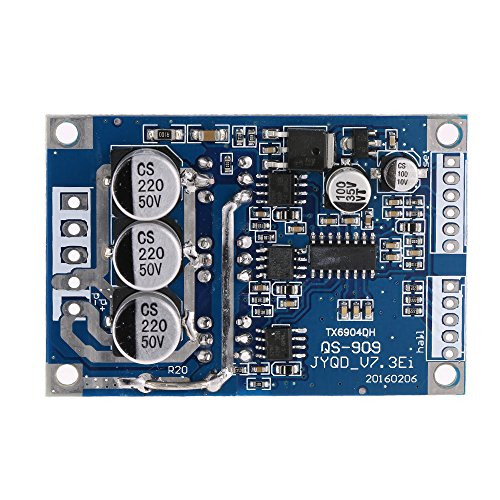

DC 12V-36V 15A 500W Brushless Motor Controller Hall Motor PWM Control Controller Module BLDC Driver Board Car Driver Control Board Module LJ

Description: 100% Brand New & High Quality Specification: Operating voltage: DC 12V-36V Operating Current: <=15A Driver Power: <=500W Speed Voltage: 0.1V-5V Operating Temperature:-40-85°C Humidity: 90%RH Stall protection:Yes Enable Control: Yes Over-current protection: Yes Steering control: Yes Speed control signal: Yes Size: 63*42*17mm(L*W*H); Probe size 3mm,length: fixing hole center distance 57mm; width:fixed hole center distance 36.5mm Power terminal Out: VCC(positive power supply) GND(negative one) MC(motor phases W) MB(motor phases V) MA(motor phase U) Tips: If you use less than 60W, without additional heat sink , be sure to add more than 60W heatsink fins drive efficiency without lowering the temperature is too high will shine into permanent damage! The size of the heat sink may be a bad environment based work(recommended cooling surface area greater than 200 square centimeters)!When installing the heat sink ,must pay attention to the back of the module 6 MOS pipe insulation, no insulation, it will be adhered to drive plate permanently damaged! Proposes to add insulation films, both sides of the insulating sheet plus thermal grease! Package Includes: 1 x 12-36V 500W Brushless Motor Controler
