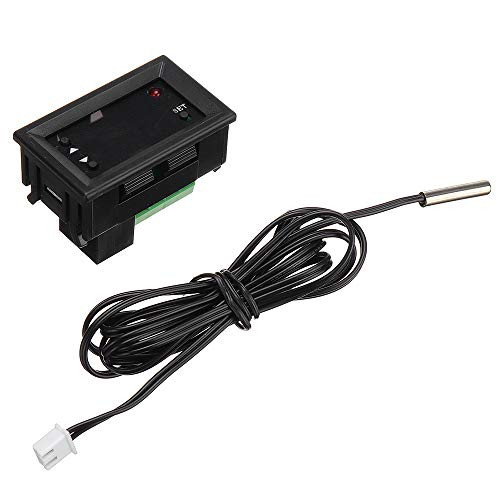

Davitu Module Board Test and Measuring Module - YF-5 Automatic Constant Temperature Detection Controller Temperature Control Switch Module with Digital Display - -Voltage: 110V~220V-

Specifications: Model: YF-5 Working voltage: 7-24V DC / 110-220V AC (Optional) Temperature measurement and setting range: -50.0 ~ 110.0 ? Measurement accuracy: 0.1 ? Output power: DC: 10A (MOS tube control) AC: 3A (triac control) Probe length: 1 meter Function Mode: Three modes: heating mode, cooling mode, manual mode: (Heating mode, cooling mode. automatic intelligent judgment mode, no need to consider) Heating mode: Start temperature Cooling mode: Start temperature> Stop temperature: For example: above 30 degrees, the output works. below 20 degrees, the output stops. Manual mode: Long press the middle button for 2 seconds. exit / enter the temperature mode. Press the output to work. press the output again to stop. can not be controlled by temperature Package includes: 1 x YF-5 Automatic Constant Temperature Detection Controller
