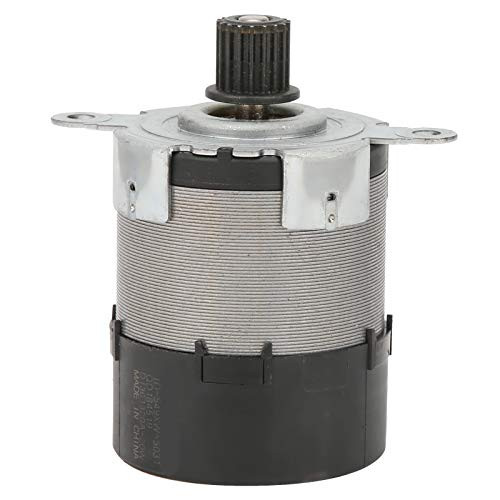

Brand new original Japanese nidec24H built-in drive brushless motor,
The workmanship is very good, the brushless motor,
Imported NMB double ball bearings,
Built-in drive type brushless motor,
With 100-line dual-channel encoder,
The motor supports PWM signal speed regulation and forward and reverse rotation,
With emergency stop function, this motor has a synchronous pulley,
18 teeth MXL timing belt wheel,
The pulley diameter is 11mm,
Remove the pulley shaft diameter 6mm,
The default delivery belt pulley
This motor supports our multifunctional PWM speed control board,
Can support forward and reverse switching and stepless speed regulation,
The speed control board needs to be purchased separately.
https://www..com/item/4000208155563.html?spm=2114.12010615.8148356.57.421741e1gqPGeN
1 patch cord for each motor,
Voltage test can run from 9V~12V~24V,
No-load current 70mA when 9V power supply, the speed is about 2246 rpm,
When 12V power supply, the no-load current is 80mA and the speed is about 3020 rpm
When 24V power supply, the no-load current is 110mA and the speed is about 6100 rpm.
Motor test operation method: connect the red wire to the positive pole,
The black wire is connected to the negative pole,
The yellow wire start wire is connected to the 1k resistor to the positive pole of the power supply,
No resistance is connected below 12V,
Then connect the white PWM line to the negative pole to run at high speed
The white wire input 20KHZ pulse width signal can adjust the speed,
The green wire is connected to the negative pole to switch between positive and negative
Note that the forward and reverse switching is best to switch after shutdown to prevent instantaneous surges.
Encoder supply voltage 5V,
If you dont need the encoder, you can leave it alone. (Note that connecting the encoder 5V power supply will also supply the internal control power
