Description:
Features: Easy Structure, Mini Body, 6 Terminal , 2 Pole 2 Throw, Sliding Knob Actuator.
Widely used to control operation of many small power electronic projects, including volume and other controls for audio video, dimmer controls for lights. etc.
Also a great component for DIY.

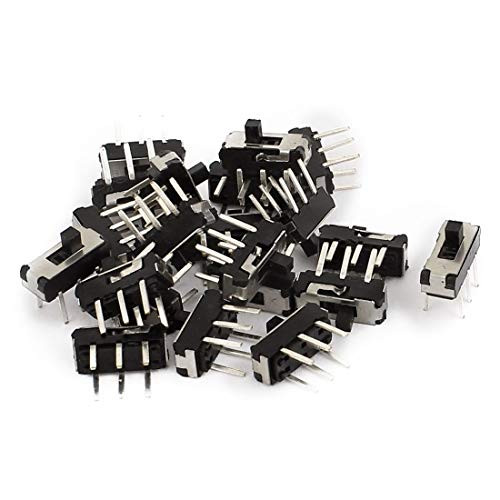

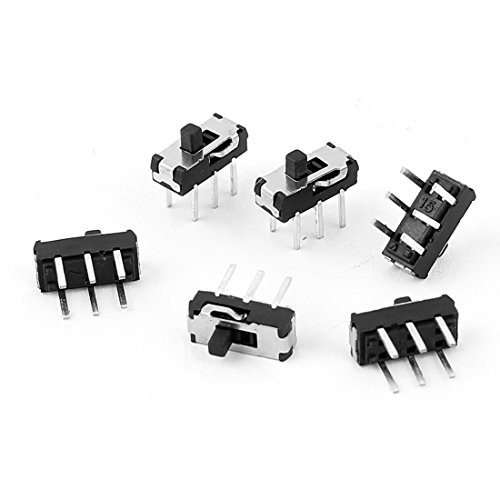

Product Name?Slide Switch
Model No.?SS22F04-G5
Position?2
Pins Design?6 Pins ( Double Rows )
Contact Type?2P2T
Rating?DC 50V, 0.5A
Contacts Resistance?30M?
Insulation Resistance?100M?
Minimum Load?DC 500V
Dielectric Strengths?
AC 500V / 1 minute
Life Test?10000 cycles/ minute
Knob Height?5mm / 0.19""
Pitch?3mm / 0.12""
Overall Size?13 x 9 x 15mm / 0.5"" x 0.35"" x 0.6""(L * W* H)
Material?Plastic & Metal
Weight?7g
Package includes: 100 x Slide Switch
