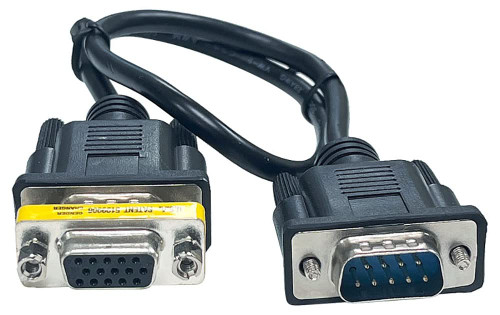

RGB CGA 9-Pin Female to HD15 Pin Male VGA Adapter Cable
This is a custom-made RGB video adapter cable intended to be used for connecting a 15Khz RGB signal to our RGB converter AV-1M model with VGA output to LCD flat panel display.
It will pass the RGB video signal from a 9-pin D-sub type output from legacy device through a 15-pin VGA-like connector. Pass-through only with NO video format conversion.
We suggest you to order this adapter cable along with our RGB converter together to avoid the the connection problem or you may customize one yourself based upon our specification.
[Note:] If you simply use this adapter cable without going through our CGA RGB to VGA converter or a hardware video converter for connection between your RGB device and a VGA monitor , the sync frequency will not be adjusted and result in NO Picture display on monitor.
Custom RGB To VGA Pin-Out Mapping/Assignment
Please refer to our diagram for the pin-out assignment and check if your RGB device is compatible with the same pin-outs
Optional Cable Extension Or Connector Gender Change

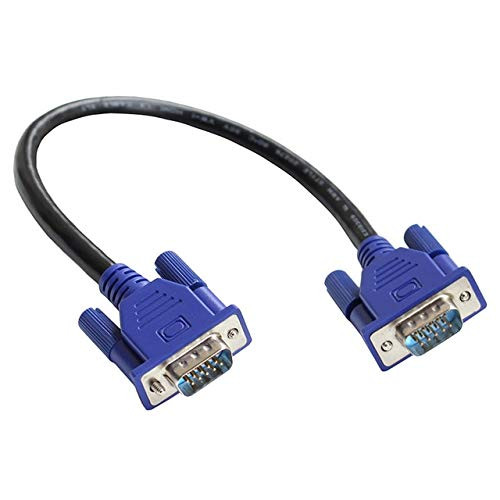

This RGB adapter cable is 1.5 feet long. If you need this CGA RGB adapter cable to be longer in length, you can extend the 15-pin VGA end by joining it with a longer VGA cable as needed.
