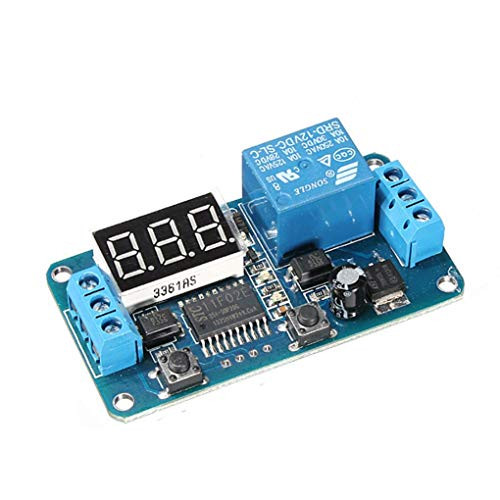

Comidox 1Pcs Automation DC 12V Time Delay Relay Module LED Display Digital Delay Timer PLC Delay Time Control Switch 0.1Sec to 999Min Adjustable

Specifications: Size: 64.2* 34.8* 18.5mm/2.52*1.36*0.72inch Relay specifications: AC 220V 10A or DC 30V 10A Static current: 20mA, working current: 50mA Working voltage: 12V [10-16V] Trigger signal: 12V signal voltage 4V ~ 20V Life expectancy: about 100,000 times, working temperature: - 40 ~ 85 C Work mode selection: After booting, press and hold K1 for 2 seconds to enter the selection function mode, from P1-1 to P1-4 can be selected. P1-1 working mode: the signal triggers the relay to pull in. When the time is up, the relay is disconnected. The user can set the time T of the relay to pick up, press the K2 hundred digit digital tube to start flashing, press K3 at this time, the hundred digits change. Press K2 ten digital tube to start flashing, press K3 at this time, ten digits change; press K2 digit digital tube to start flashing, press K3 at this time, the digit value changes; press K2 again; digital The tube is no longer flashing. At this time, press K3, the decimal point is shifted. The decimal point is 0 to 999 minutes in the ones digit and 0 to 99.9 seconds in the ten digits. There is no decimal point indicating 0 to 999 seconds. After the selection is completed, the time is set. Short press K1 to enter the fine adjustment setting of the function. The trigger is invalid during the default delay. Press K1, the trigger is valid during the delay (re-timer), press K1, reset during the delay (time off, relay reset), Press again to repeat the default first time setting. Package Includes: 1Pcs
