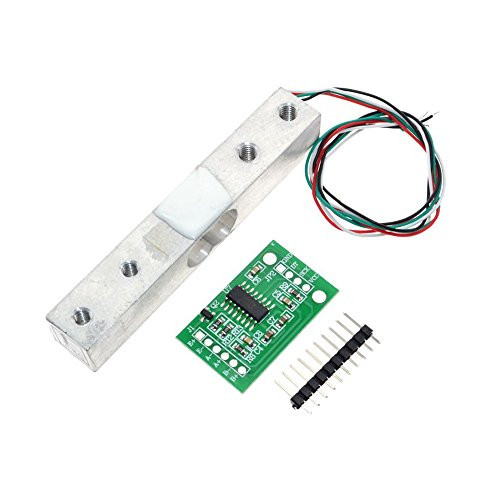

CHENBO 10kg Load Cell Weight Sensor HX711 ADC Converter Breakout Module Scale Load Cell Weight Weighing

Features Two selectable differential input channels On-chip active low noise PGA with selectable gain of 3264 and 128 On-chip power supply regulator for load-cell and ADC analog power supply On-chip oscillator requiring no external component with optional external crystal On-chip power-on-reset Simple digital control and serial interface: pin-driven controlsno programming needed Selectable 10SPS or 80SPS output data rate Simultaneous 50 and 60Hz supply rejection Current consumption including on-chip analog power supply regulator: normal operation < 1.5mApower down < 1uA Operation supply voltage range: 2.6 ~ 5.5V Operating Temperature Range:-20 degree ~ +85 degree Connection: Red to E+ Black to E- Green to A+ White to A- Note:Be sure not to directly press on the white cover to prevent damage to the sensor. Package Included: 1X Weight Sensor 10KG 1 X HX711 24BIT Precision ADC Module
